Cooling Fan Circuit (W/O Air Conditioner)

Connector Identification Symbol & Pin Number Position:

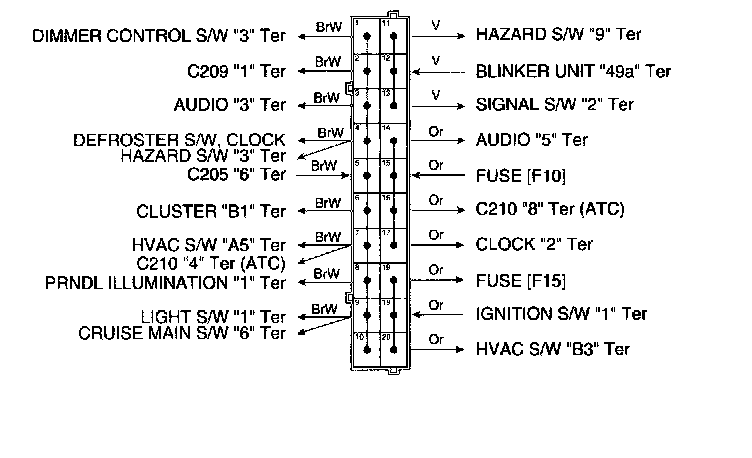

Splice Pack - S203 (Gray):

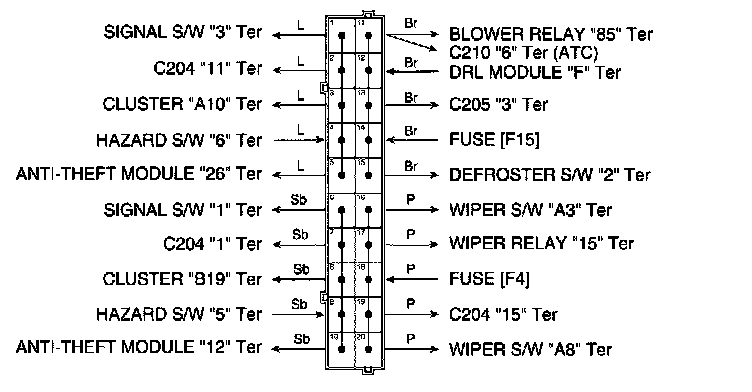

Splice Pack - S207 (Brown):
