Indicator(Fog Lamp)&Warning Lamp(Tailgate Open,Door Open)Circ
Indicator(Fog Lamp)&Warning Lamp(Tailgate Open,Door Open)Circ
Connector Identification Symbol & Pin Number Position:

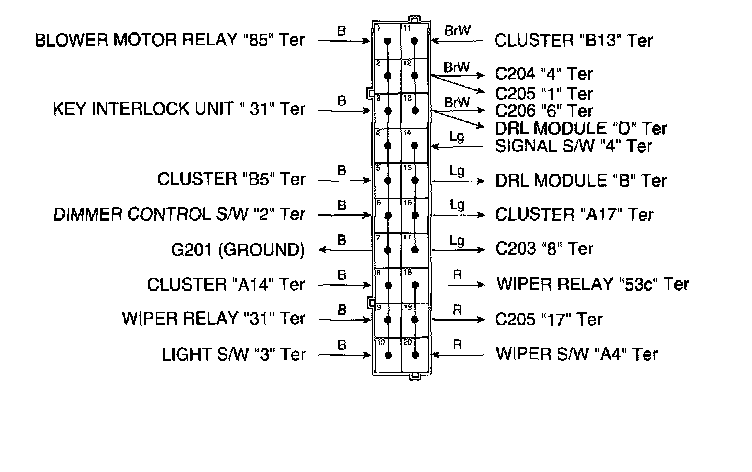

Splice Pack - S202 (Brown):
Splice Pack - S205 (Blue):
Splice Pack - S301 (Blue) - S/W:
