Home
>>
Daewoo
>>
2002
>>
Nubira CDX Wagon L4-2.0L DOHC D-TEC MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power Locks
Power Locks

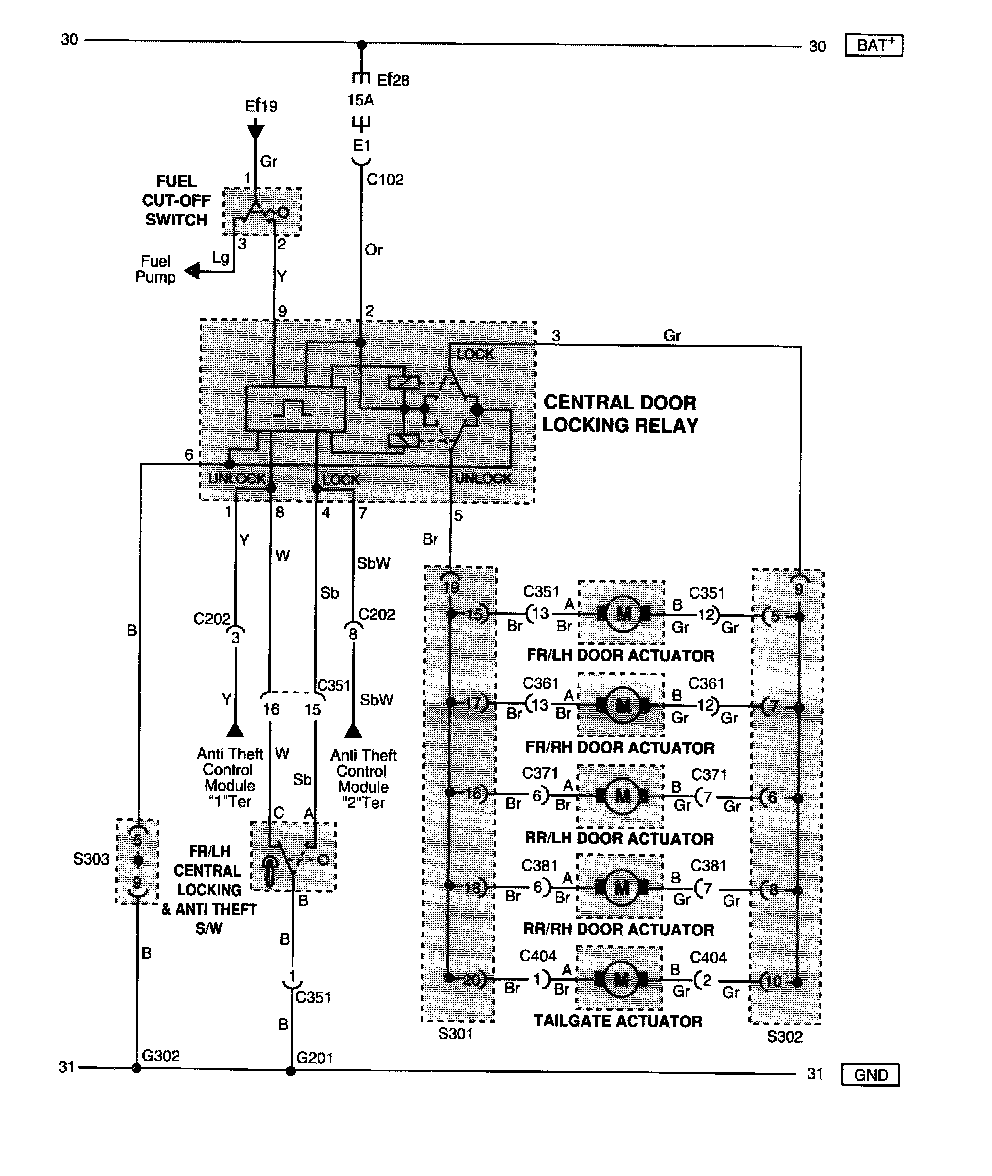

Electrical Wiring Diagram:
Power Door Locks:
Power Door Locks:
