Cylinder Head Assembly

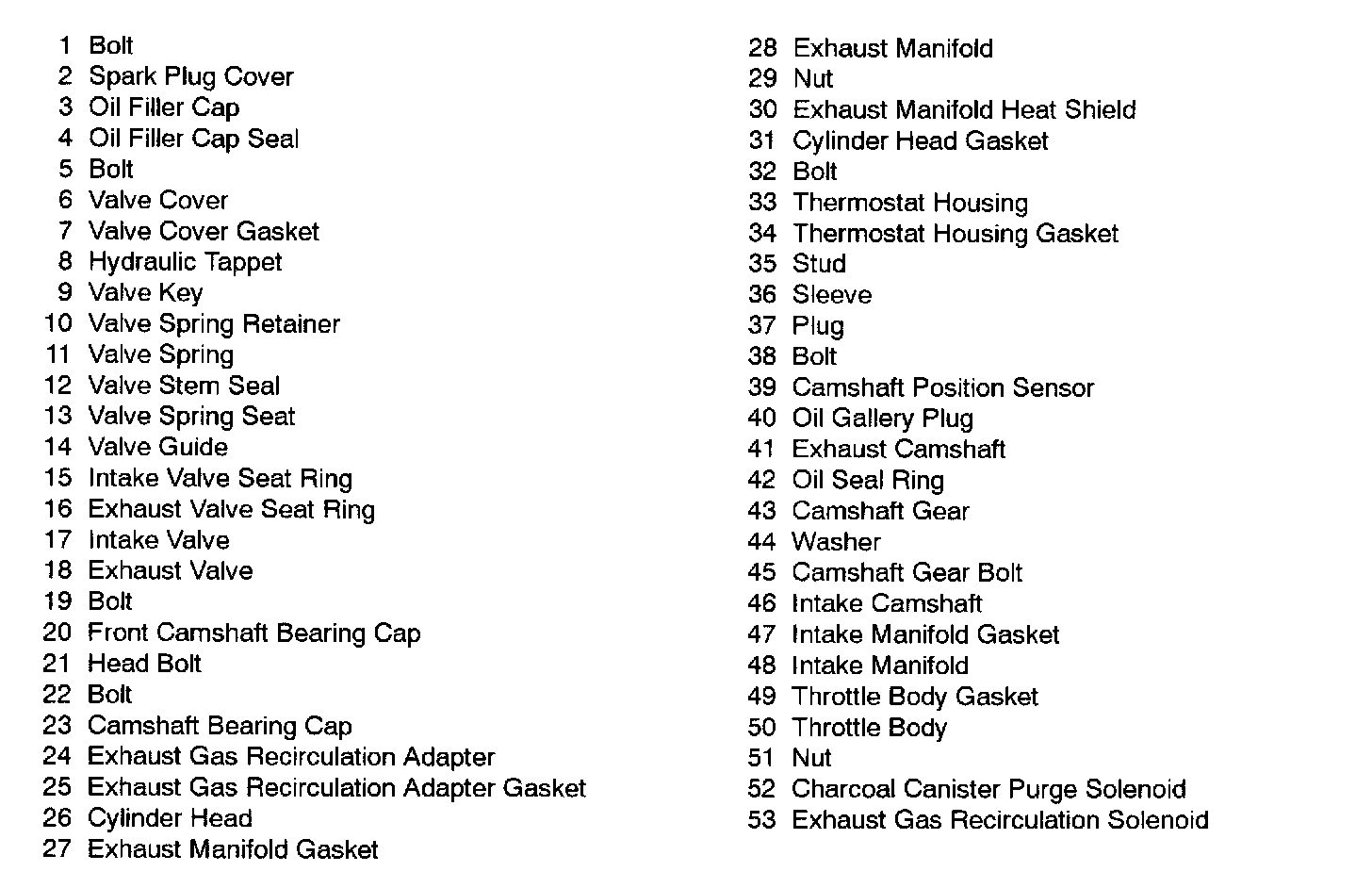

CYLINDER HEAD ASSEMBLY W/ RELATED COMPONENTS





Part 1 of 2





Part 2 of 2
