Nubira CDX Wagon L4-2.0L DOHC D-TEC MFI
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Locations
>>
Harness Locations
>>
Lamp (License Plate, Position, Tail) Circuit - W/ Seat Heaters
Lamp (License Plate, Position, Tail) Circuit - W/ Seat Heaters

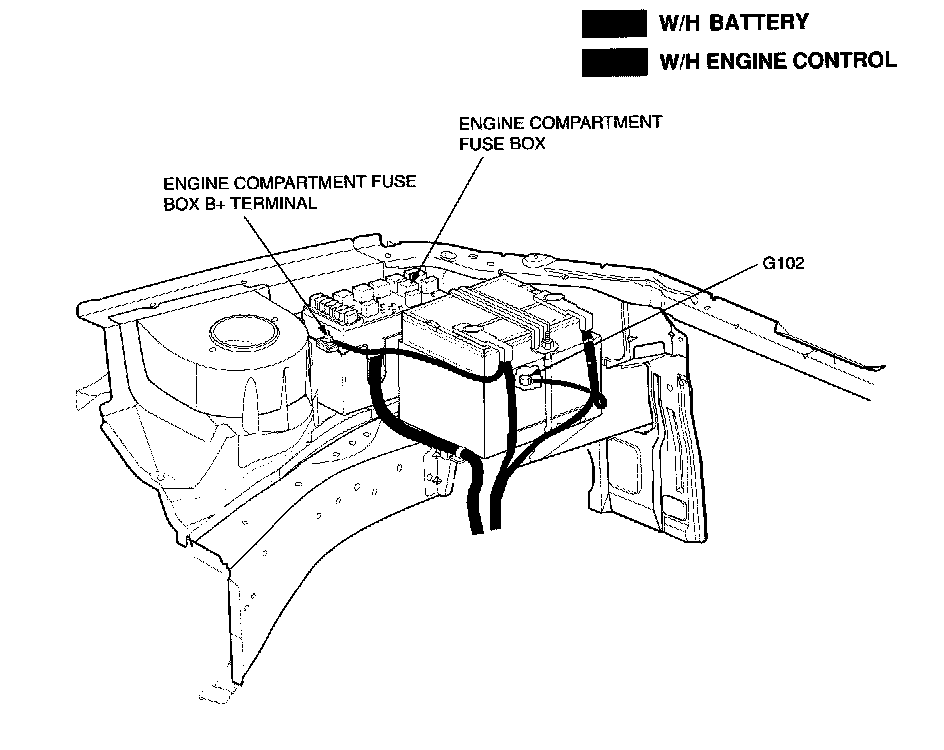

Position Of Connectors And Grounds - Engine Compartment Fuse Block:

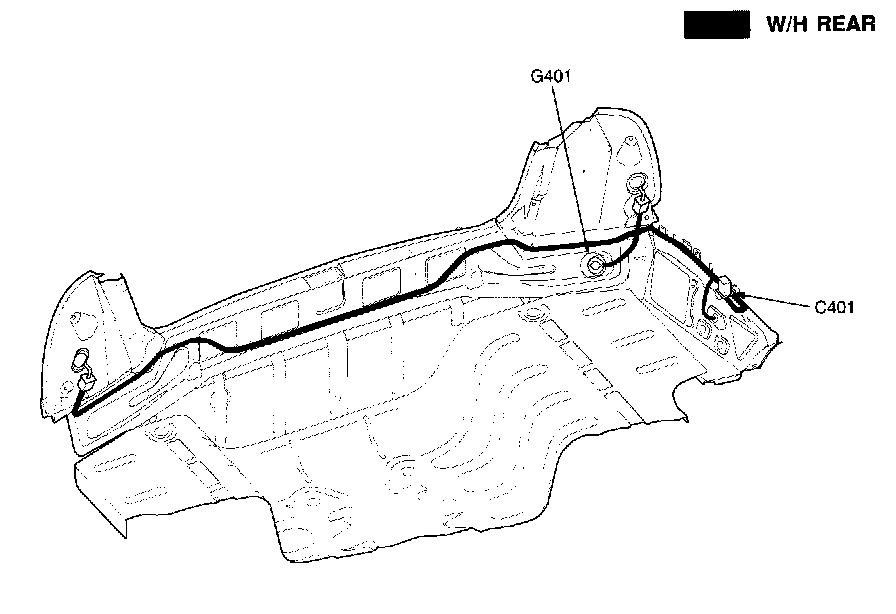

Position Of Connectors And Grounds - Trunk Room Inside:
Position Of Connectors And Grounds - Floor Panel:
