VSS Circuit - M/T
VSS Circuit - M/T
Connector Identification Symbol & Pin Number Position:

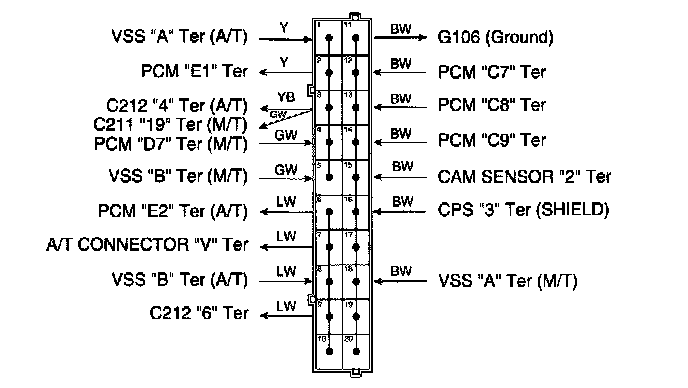

Splice Pack - S202 (Brown):
Splice Pack - S205 (Blue):
Splice Pack - S209 (White):
