Battery Power Supply, Ground, EI, CMP Sensor & Circuits
Battery Power Supply, Ground, EI, CMP Sensor & Circuits
Position Of Connectors And Grounds - Engine Fuse Block:
Position Of Connectors And Grounds - Left "A" Pillar Inside:

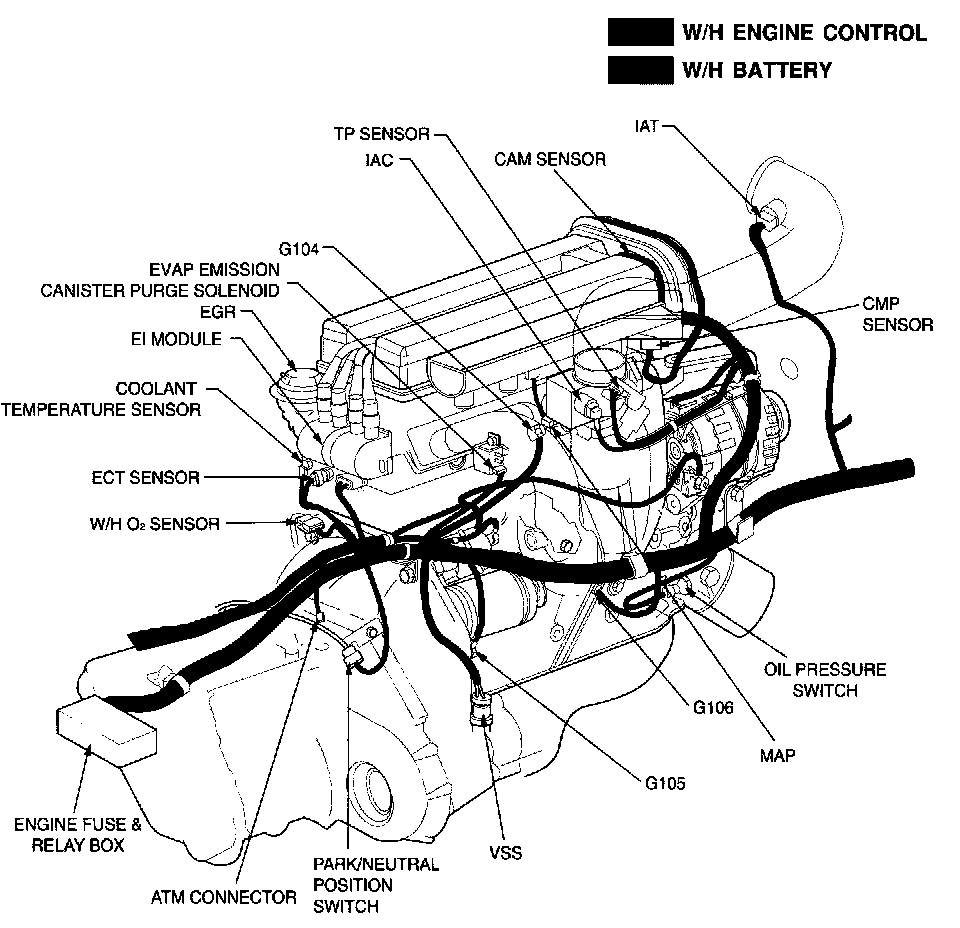

Position Of Connectors And Grounds - 2.0 DOHC Engine:
