Electrical Diagrams

Electical Wiring Diagram:

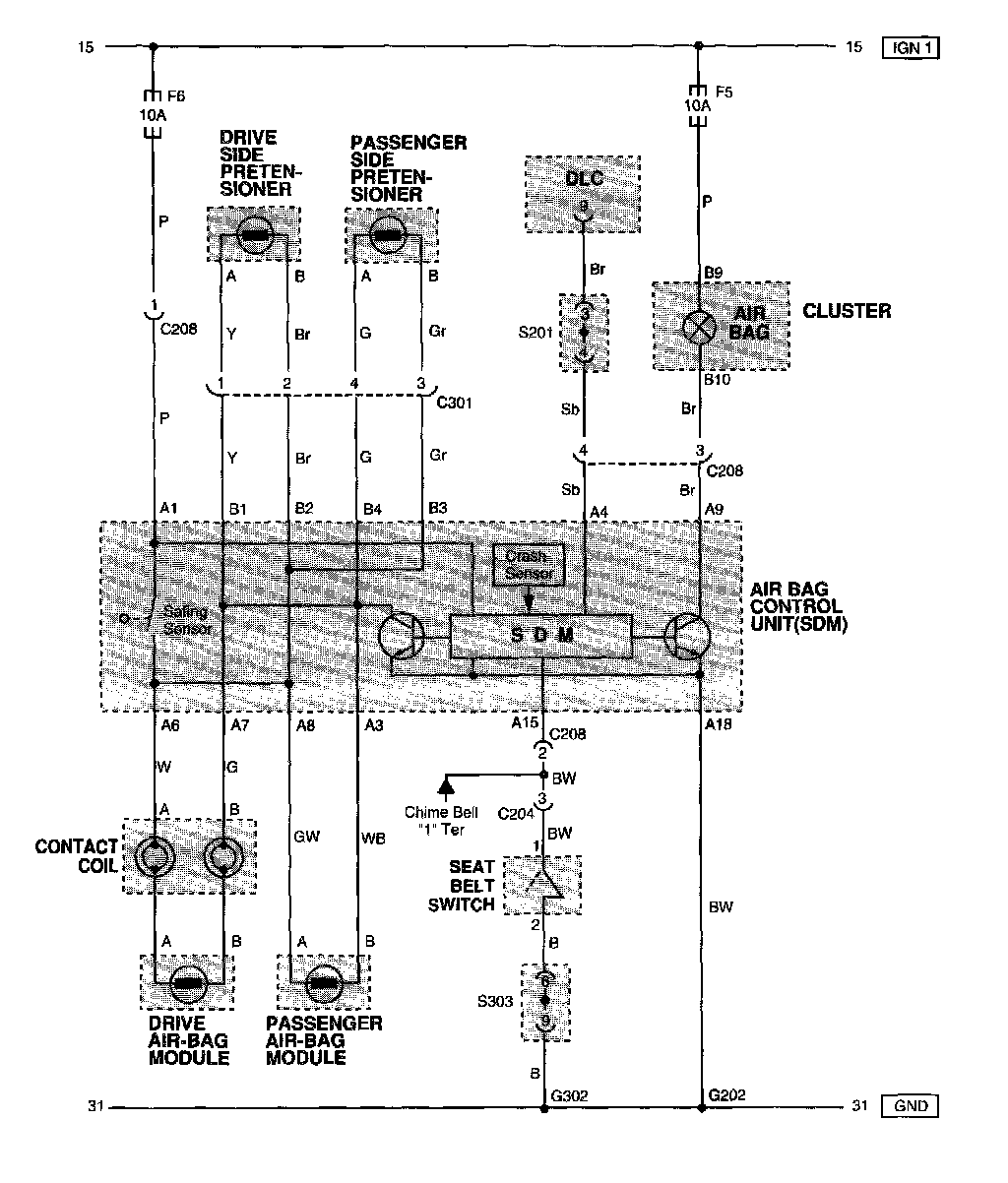

Schematic And Routing Diagrams - Supplemental Inflatable Restraint System:
