Daewoo
>>
2002
>>
Nubira CDX Wagon L4-2.0L DOHC D-TEC MFI
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Locations
>>
Harness Locations
Harness Locations

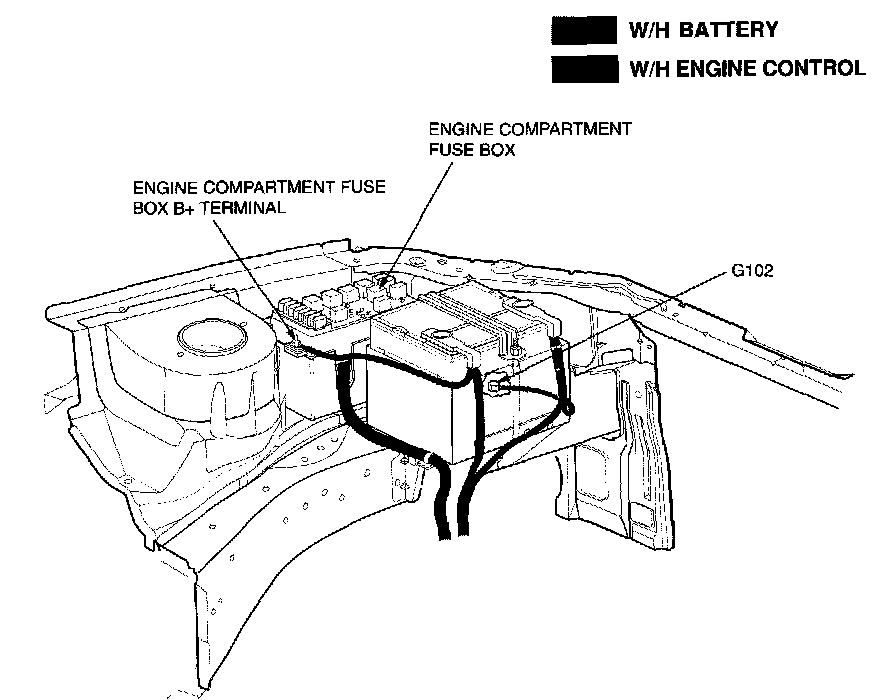

Position Of Connectors And Grounds - Engine Compartment Fuse Block:

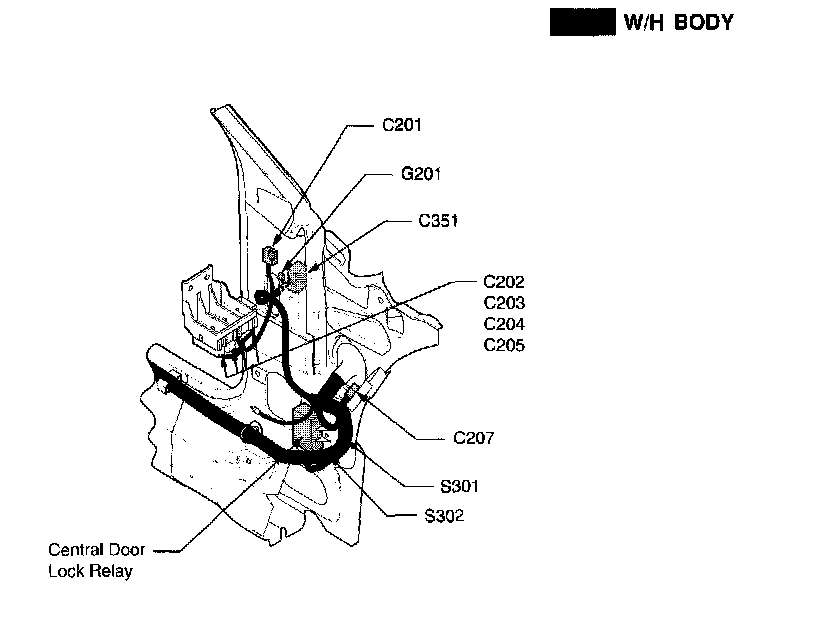

Position Of Connectors And Grounds - Left "A" Pillar Inside:
