Charade L4-1295cc 1.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Complete Body and Chassis
Complete Body and Chassis

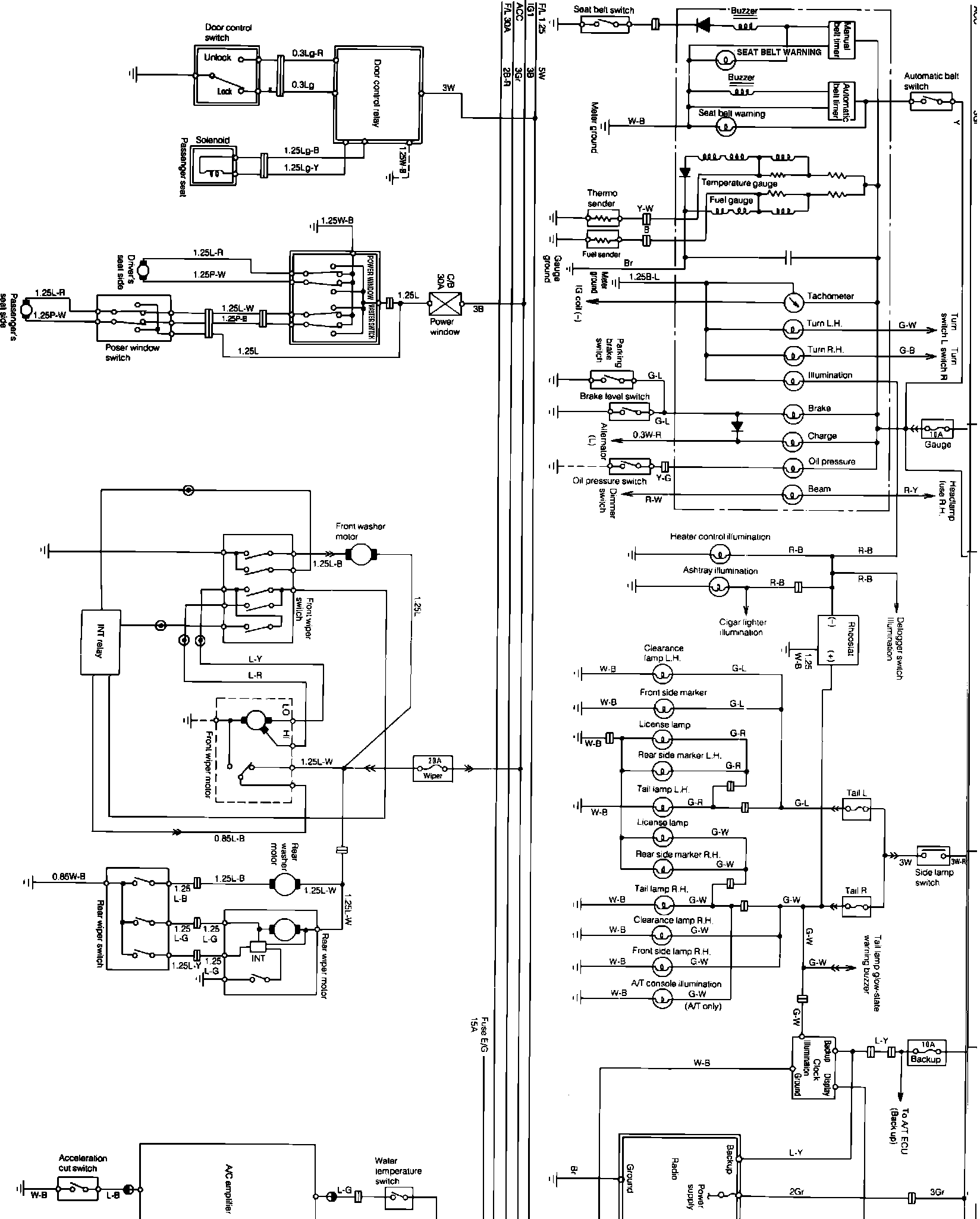

"�z ({*t{Complete Chassis Electrical Diagram:
