Daihatsu
>>
1989
>>
Charade L4-1295cc 1.3L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Turn Signals
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

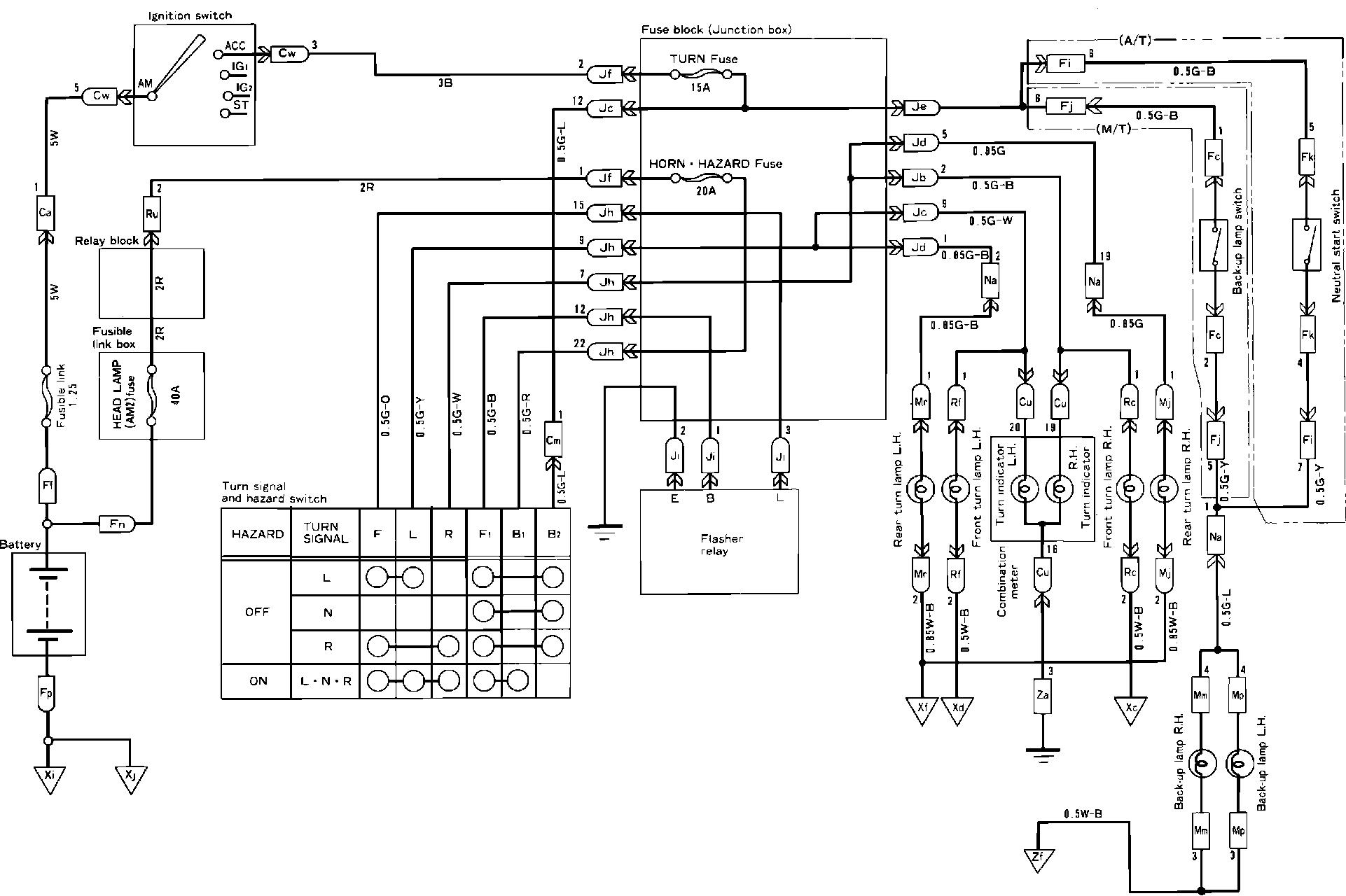

Turn Signal/Hazards:
