Daihatsu
>>
1992
>>
Charade L4-1295cc 1.3L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>
Manual Transmission
Manual Transmission

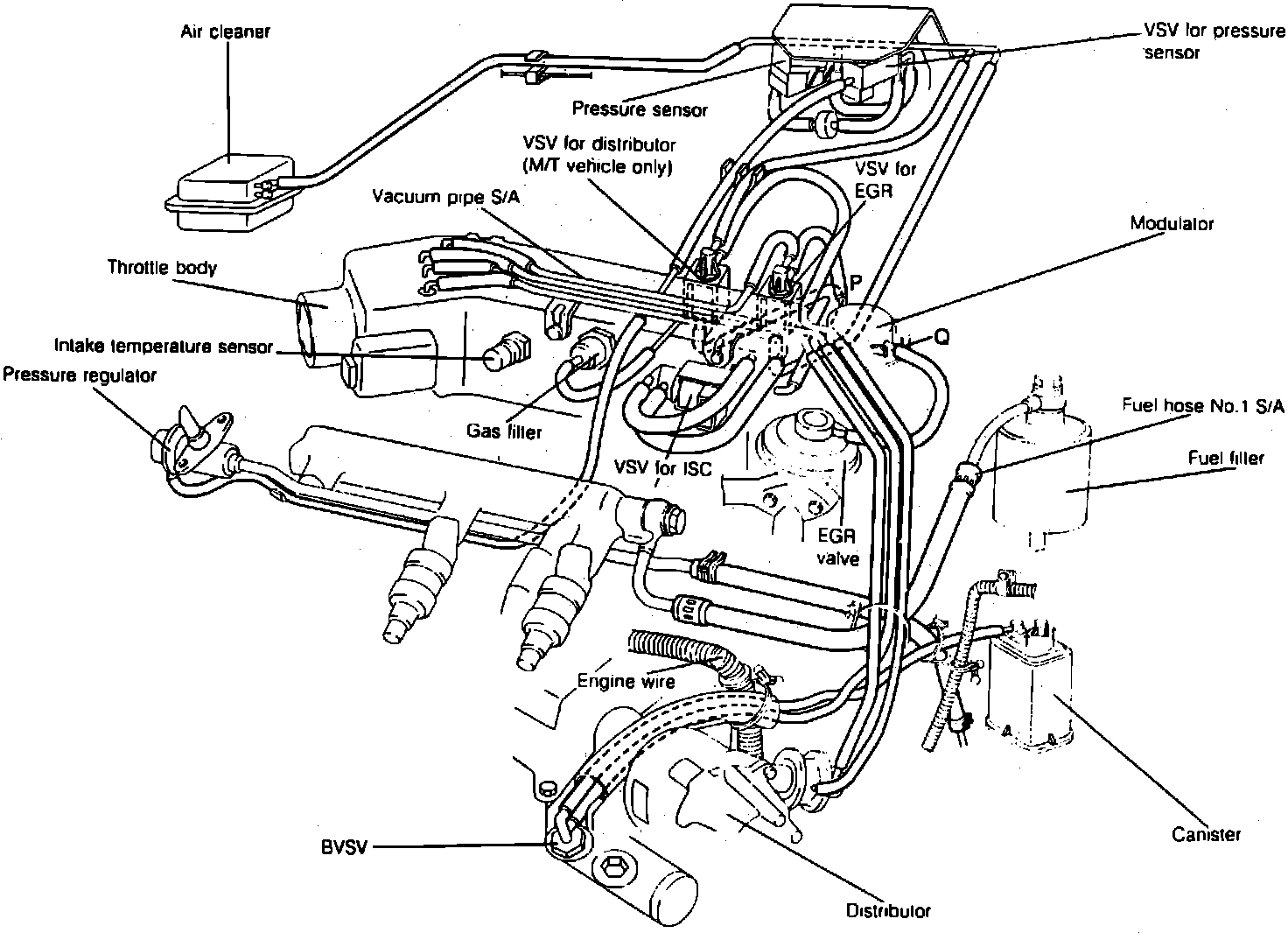

Fig. 3 Vacuum Hose Routing, Manual Transmission:
