Component Tests and General Diagnostics
1.
Perform
Ignition System
circuit test.

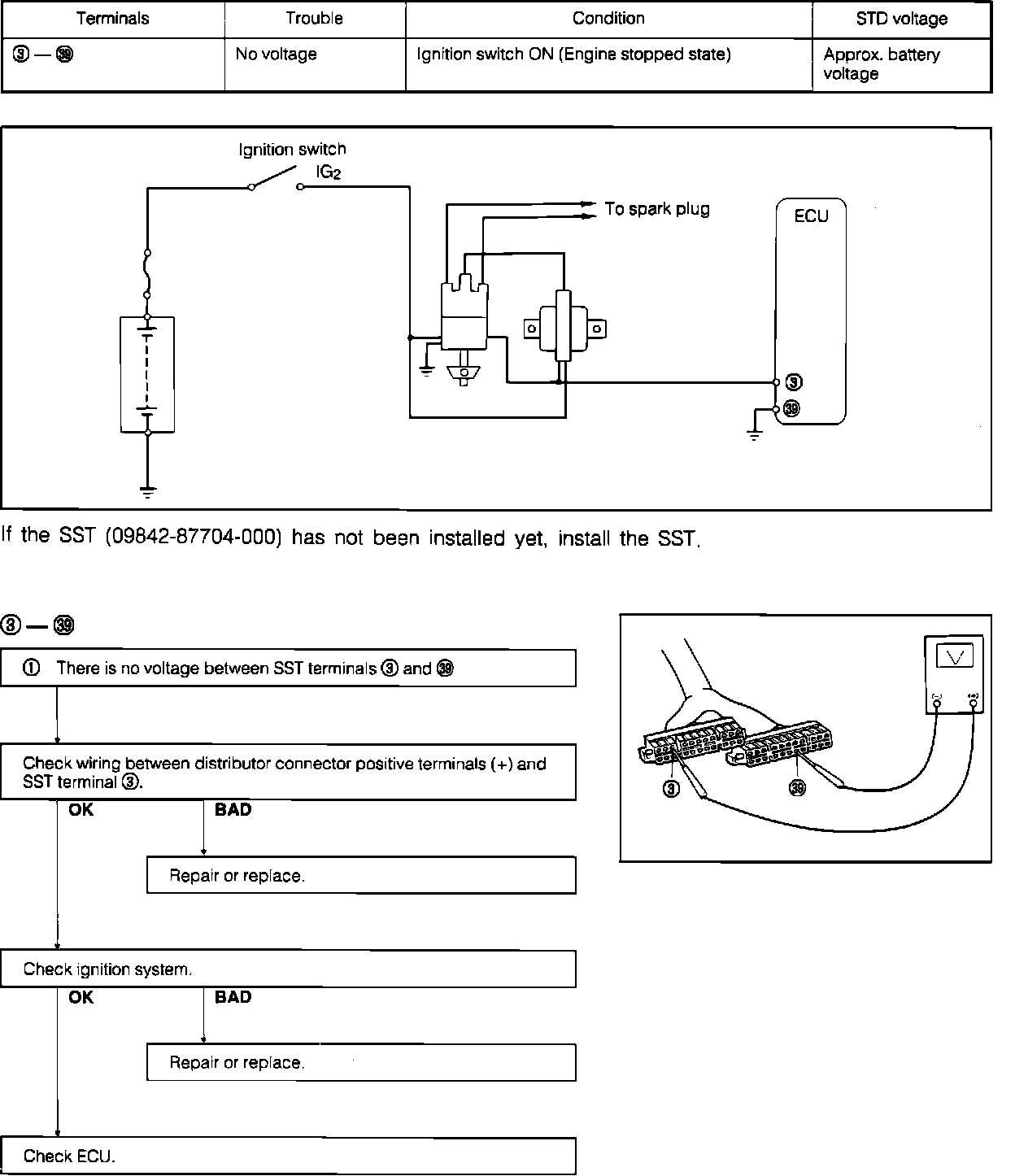

Fig. 56 ECU System Diagnosis, Ignition System Check:
