Test 3A

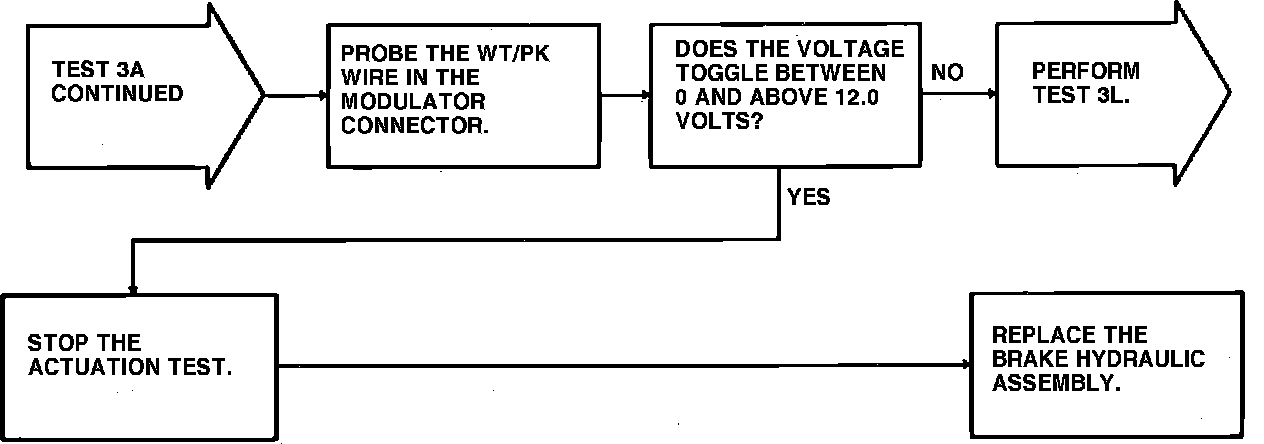

Fig. 7a Test 3A, Modulator Fault (Part 1 Of 5):

Fig. 7b Test 3A, Modulator Fault (Part 2 Of 5):

Fig. 7c Test 3A, Modulator Fault (Part 3 Of 5):

Fig. 7d Test 3A, Modulator Fault (Part 4 Of 5):

Fig. 7e Test 3A, Modulator Fault (Part 5 Of 5):
