Home >> Dodge or Ram Truck >> 1990 >> Caravan V6-201 3.3L >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Speedometer Cable >> Testing and Inspection

Speedometer Cable: Testing and Inspection

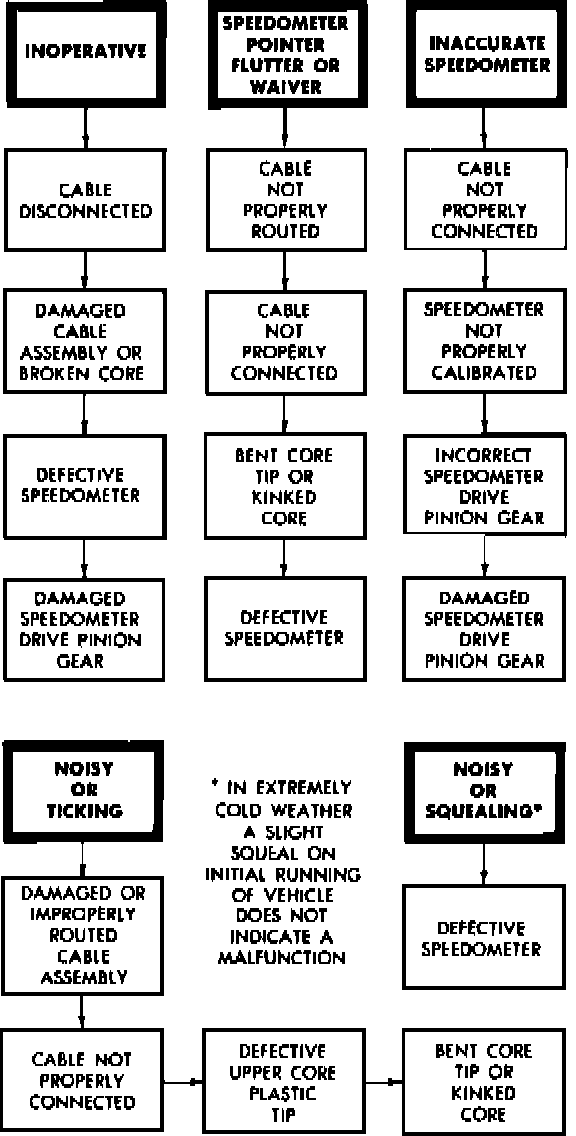

Fig. 1 Speedometer & cable diagnosis.:
