Wiring Diagrams - Service Manual Revision

9234chrysler02

NO.: 08-11-92

GROUP: Electrical

DATE: Jul. 13, 1992


SUBJECT:
Service Manual Revision - Wiring Diagrams


MODELS:

1992 (AA) Acclaim/Spirit/Lebaron Sedan
(AS) Caravan/Grand Caravan/Caravan CV
Voyager/Grand Voyager/Town & Country
1993 (ZJ) Grand Cherokee


DISCUSSION:

The attached wiring diagram pages have been revised. The revised area of each page is highlighted in red. Please insert these pages into the appropriate service manuals.

1992 Front Wheel Drive Car Wiring Diagrams Service Manual, Publication No. 81-270-2103

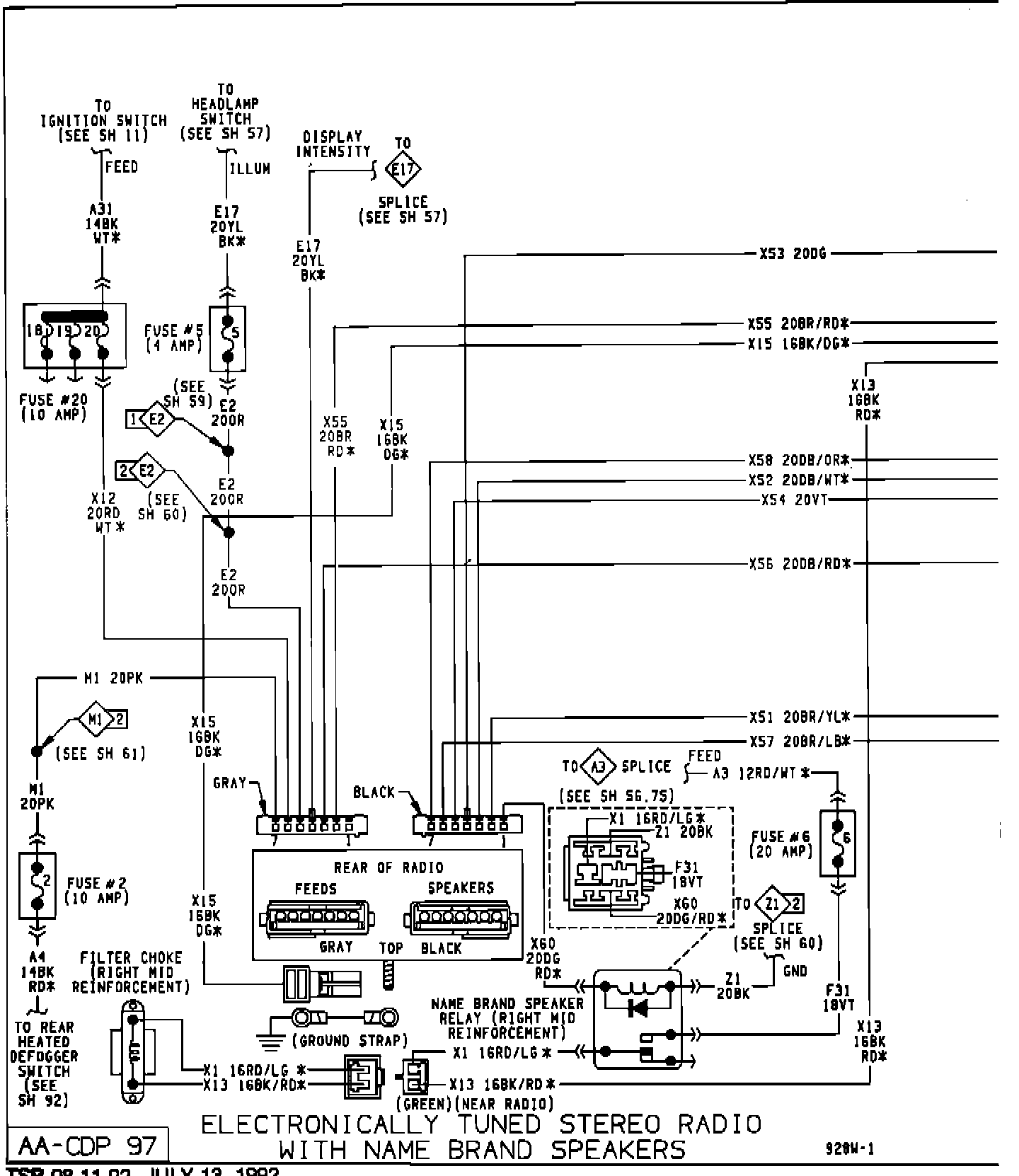

Page No. 8W-292 The pin locations of the El7-20YL/BK* and X55-20BR\RD*
(Sheet No. 97) circuits in the gray 7-way radio connector have changed.

1992 Front Wheel Drive/All Wheel Drive Van/Wagon Service Manual, Publication No. 81-370-2105

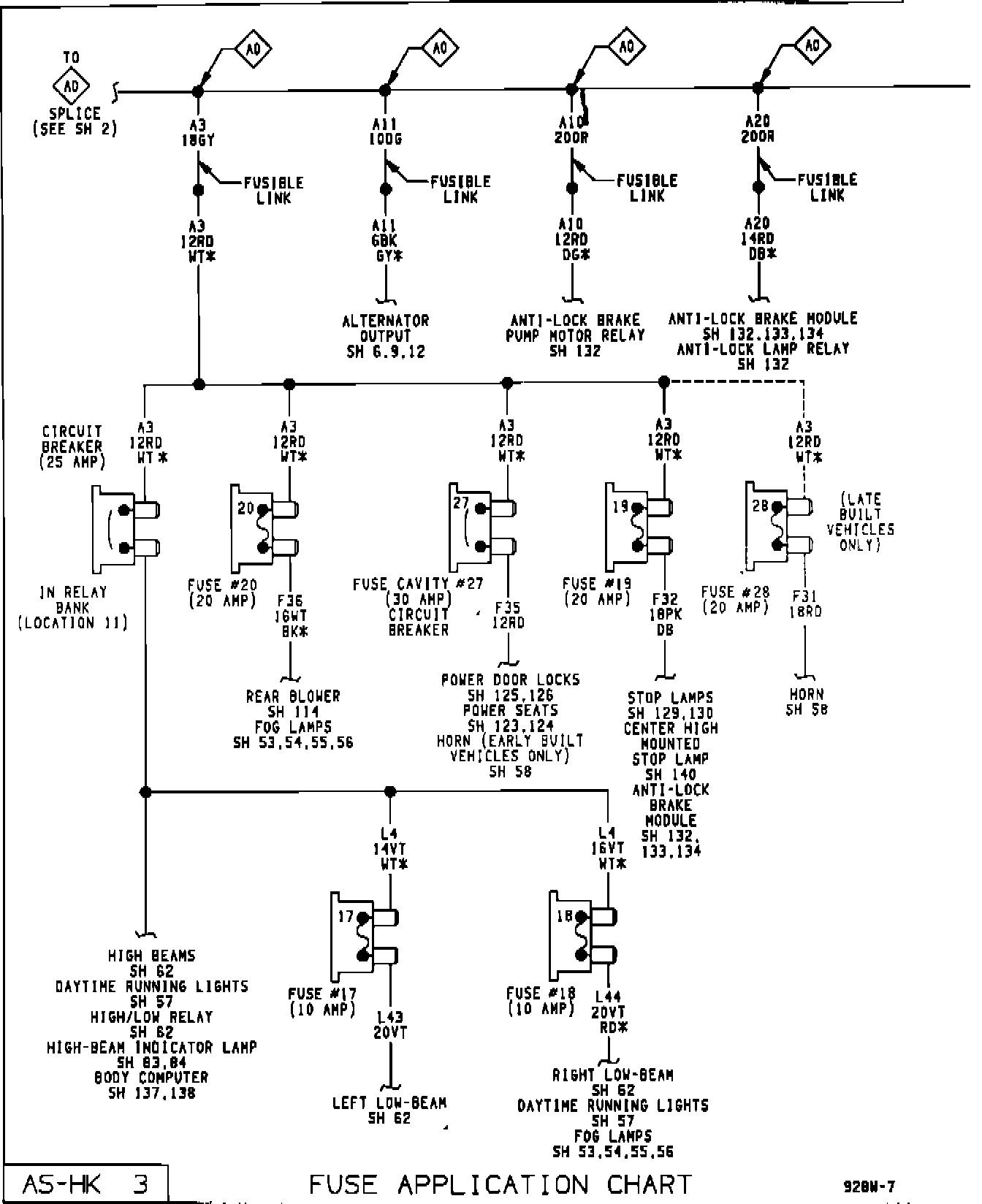

Page No. 8W-56 Shows the horn circuit on late built vehicles moving from fuse
(Sheet No. 3) cavity 27 to cavity 28.





Page No. 8W-111 Shows different relay conditions depending on the vehicle
(Sheet No. 58) build date.

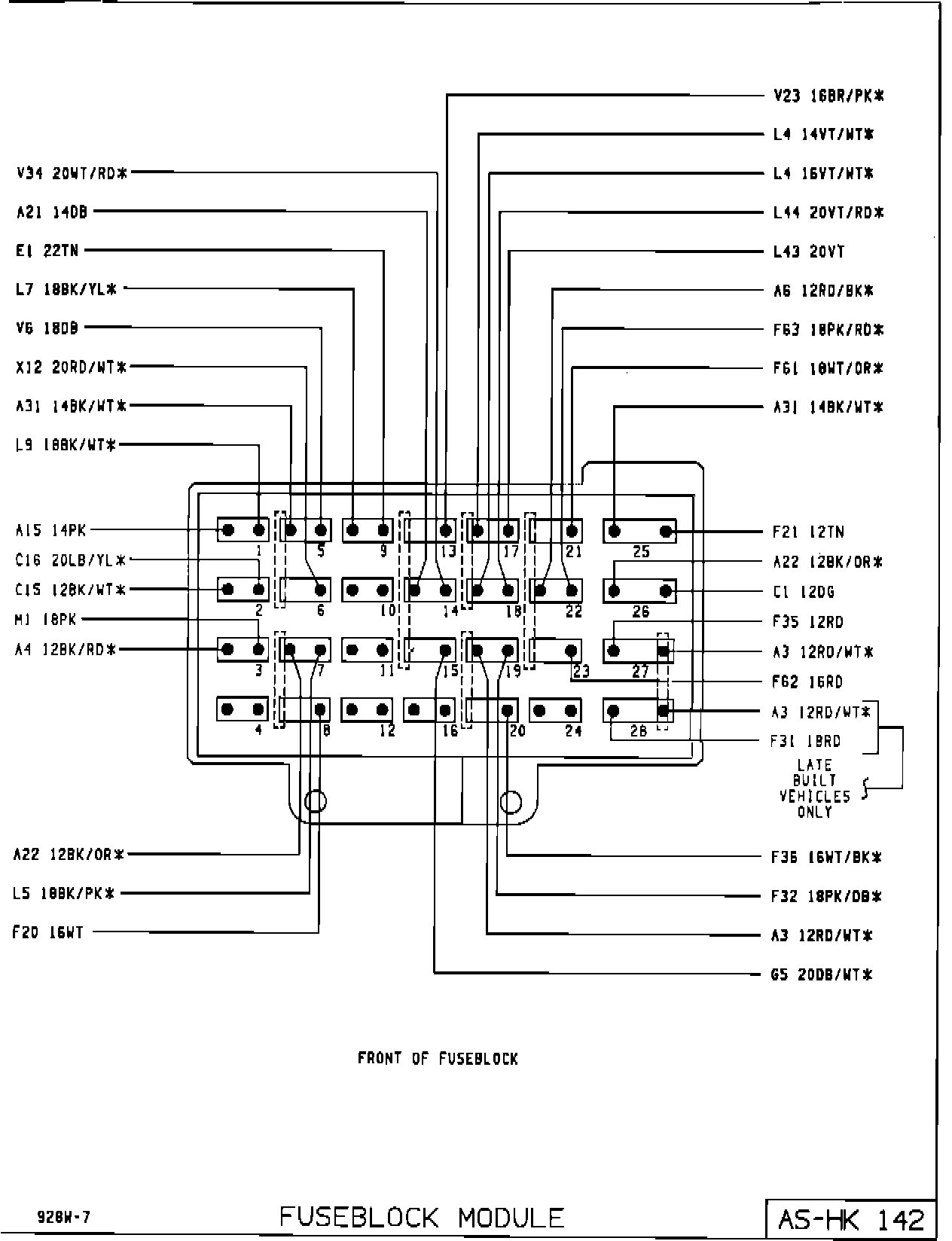

Page No. 8W-195 Shows change to the fuseblock caused by the horn circuit
(Sheet No. 142) change.

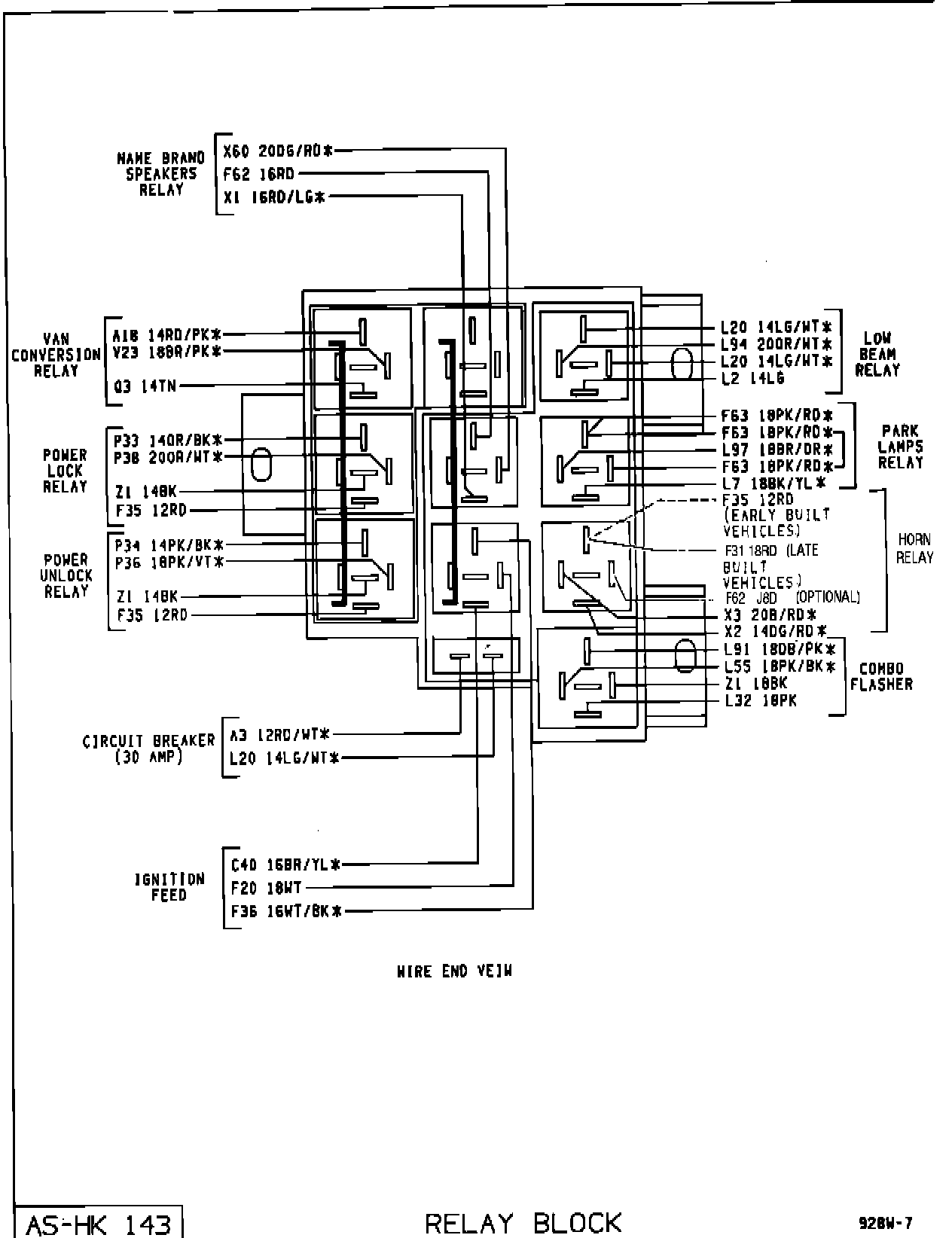

Page No. 8W-196 Shows change to relay block caused by different relay
(Sheet No. 143) conditions.

1993 Grand Cherokee Service Manual Publication No. 81-370-2147

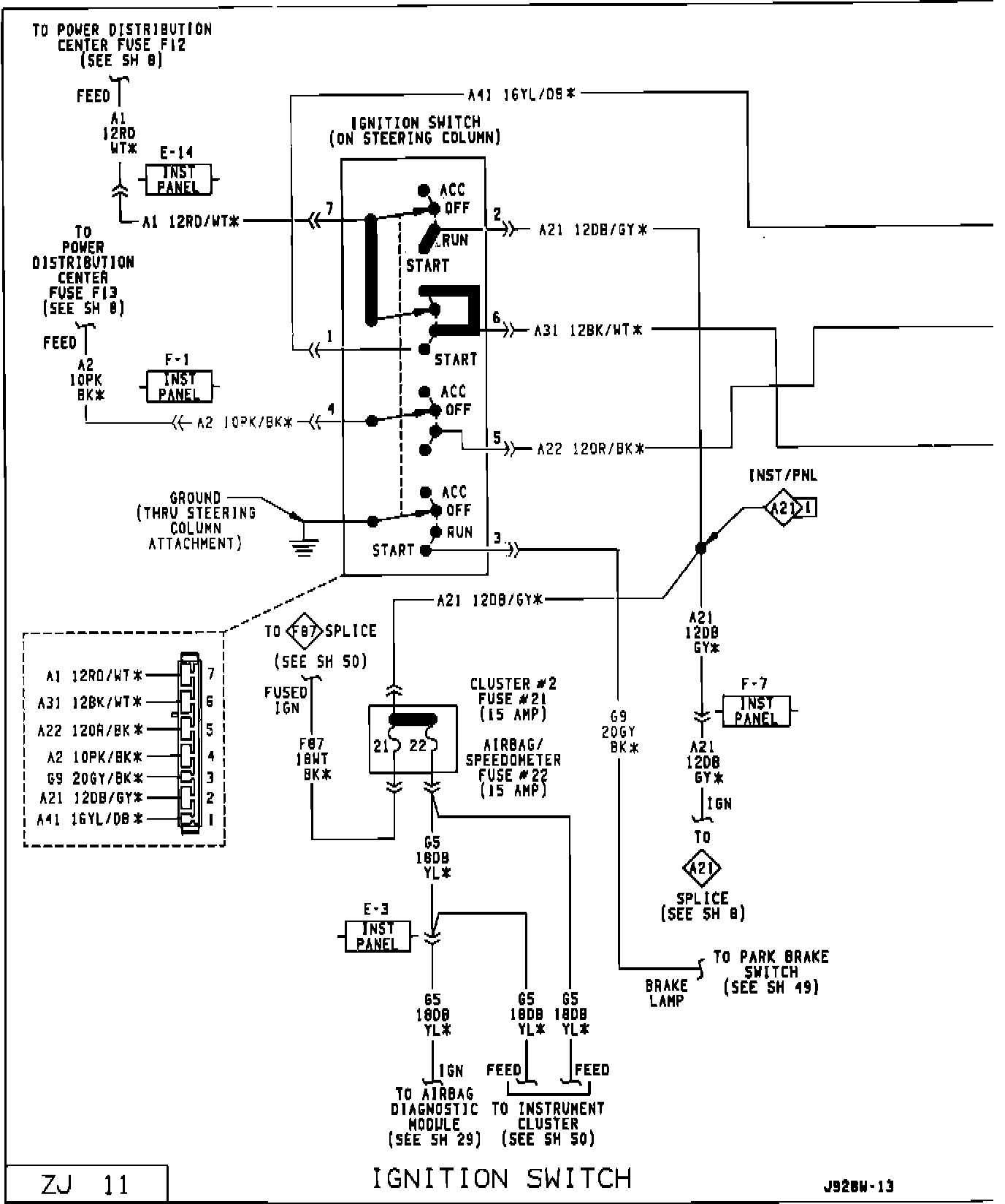

Page No. 8W - 50 The ignition switch wiring location changes.
(Sheet No. 11)
