Removal/Installation

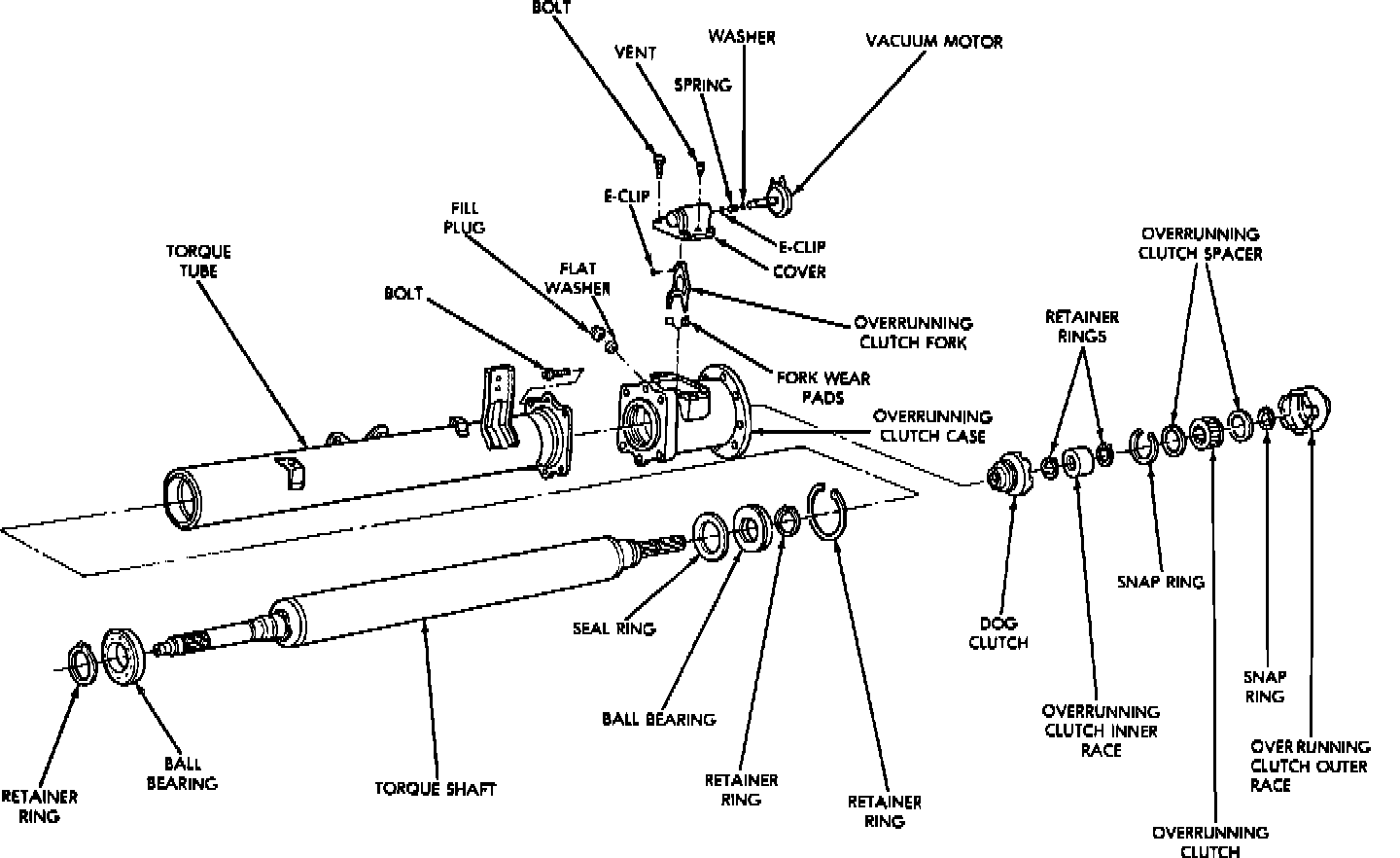

Fig. 5 Torque tube & overrunning clutch components:

1. Remove rear drive line assembly, refer to REAR DRIVE LINE.
2. Remove viscous coupling.
3. Remove snap ring and bearing shield.
4. Remove torque tube to overrunning clutch case attaching bolts.
5. Slide torque tube from torque shaft.
6. Reverse to install.
