Operation CHARM
: Car repair manuals for everyone.
Home
>>
Dodge or Ram Truck
>>
1994
>>
Caravan V6-201 3.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Dome Lamp
Dome Lamp

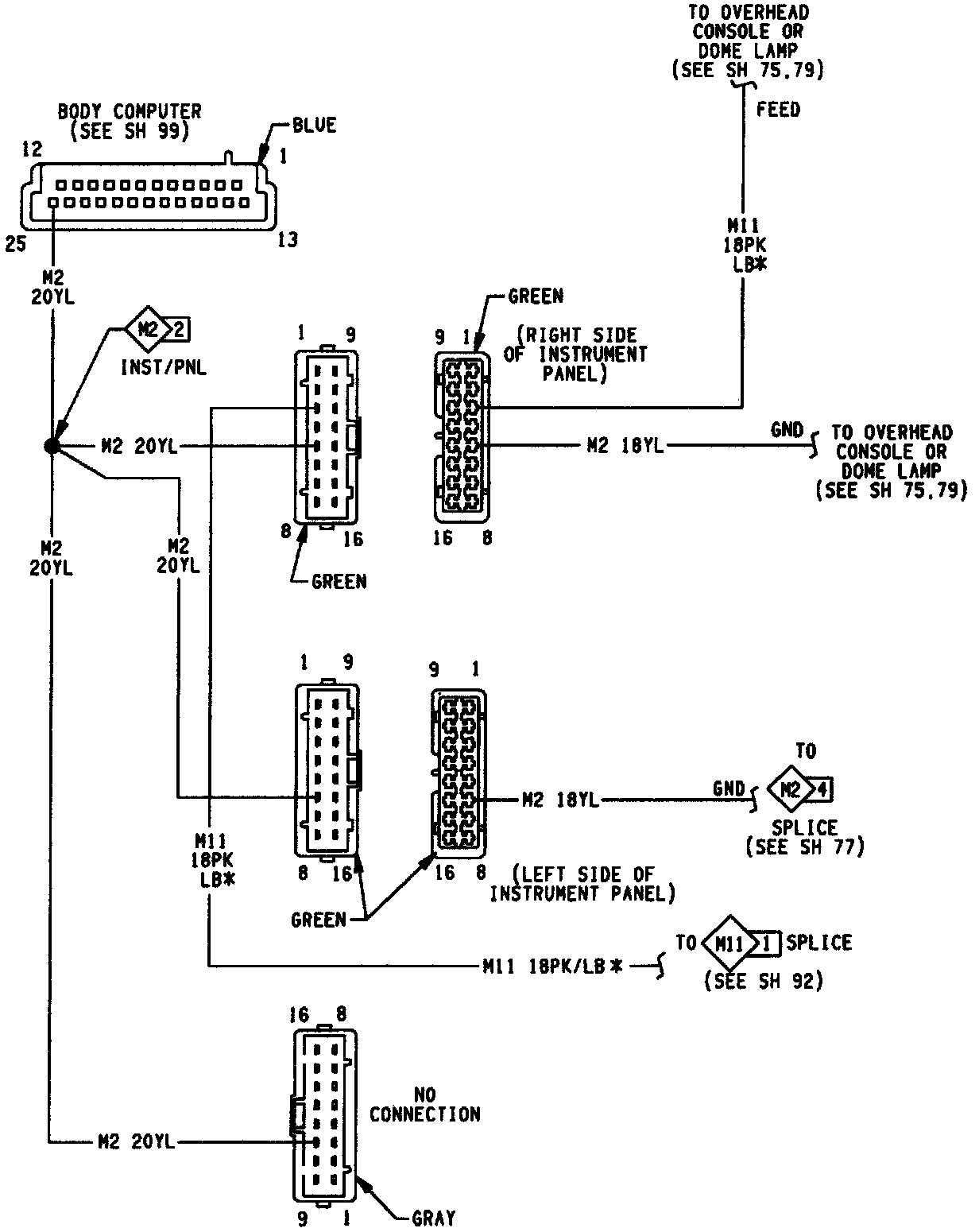

Dome And Courtesy Lamps (Part 1 Of 4):

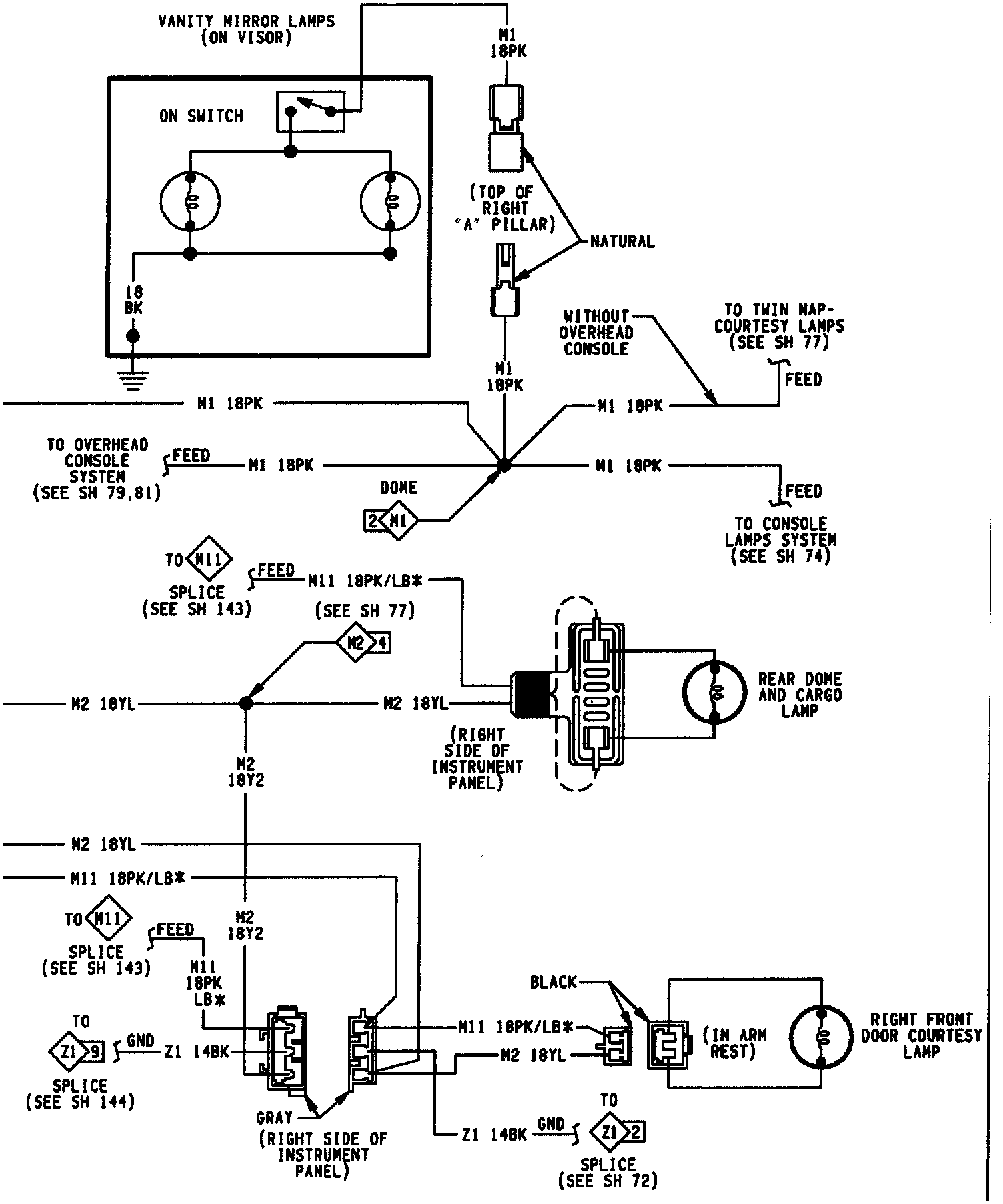

Dome And Courtesy Lamps (Part 2 Of 4):
Dome And Courtesy Lamps (Part 3 Of 4):
Dome And Courtesy Lamps (Part 4 Of 4):
