Dodge or Ram Truck
>>
1994
>>
Caravan V6-201 3.3L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Hazard Warning Lamps
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

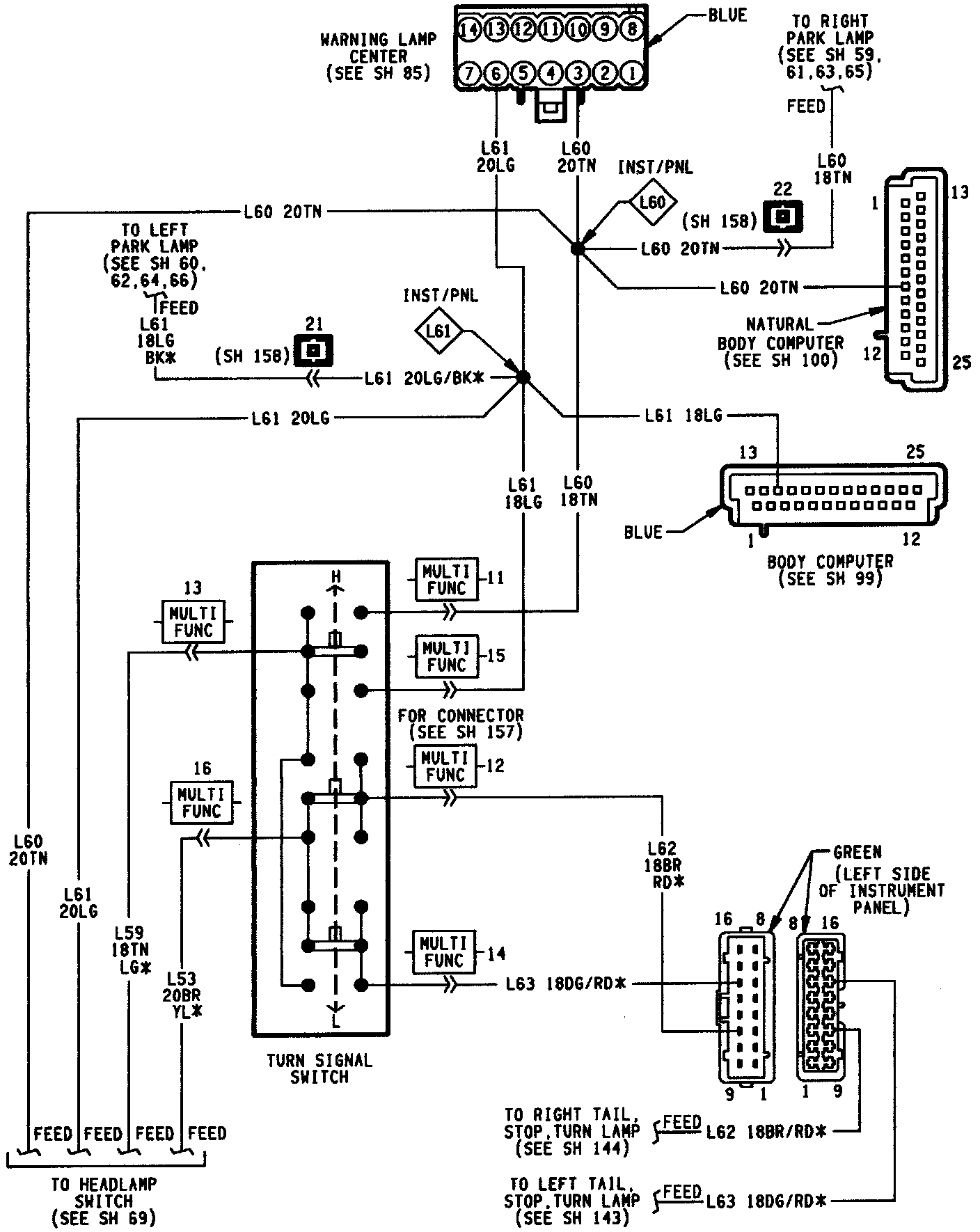

Stop/Turn & Hazard Flasher Systems:
