Electrical Accessory Panel
Electrical Accessory Panel

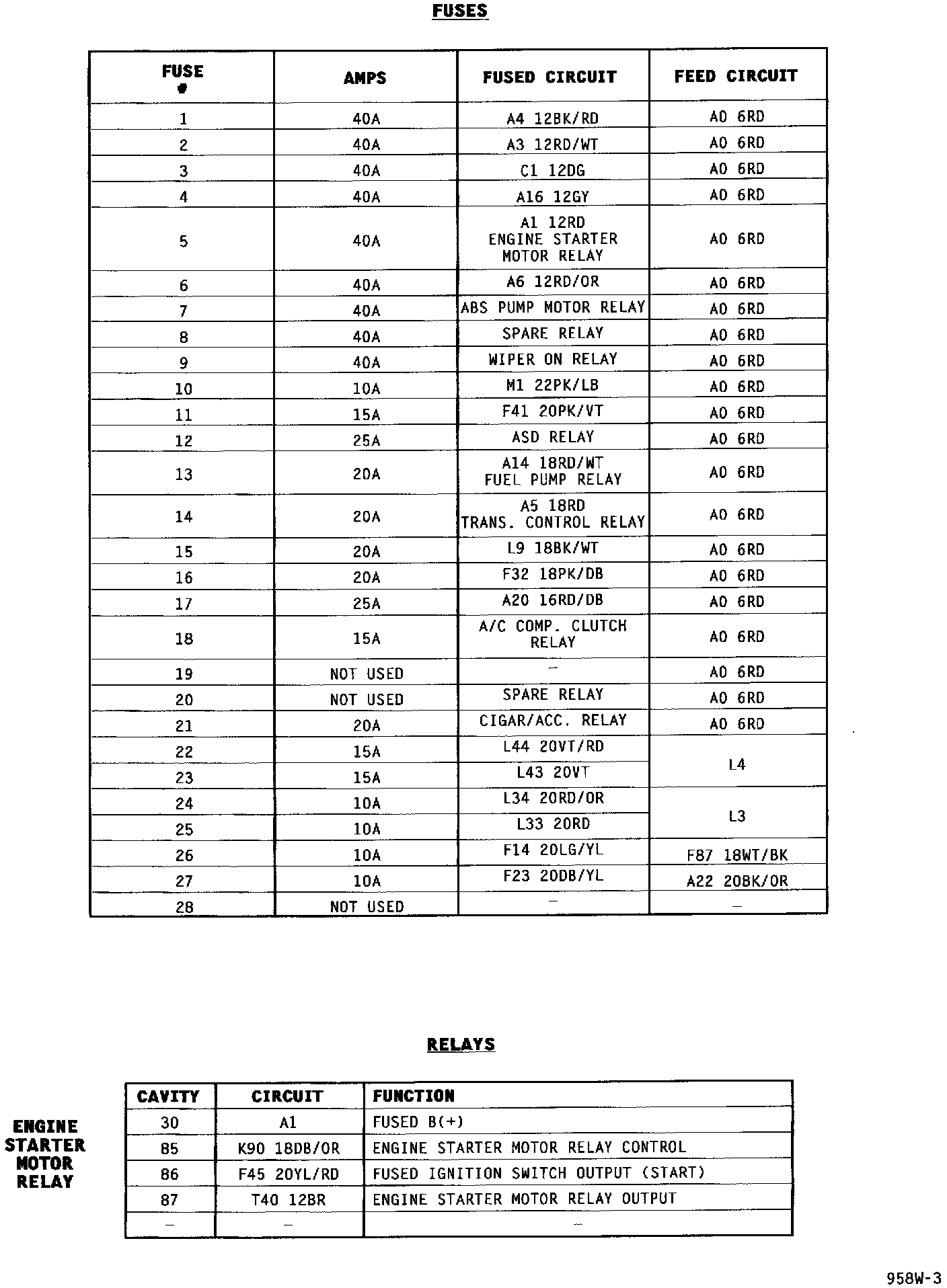

Power Distribution (Part 1 Of 5):

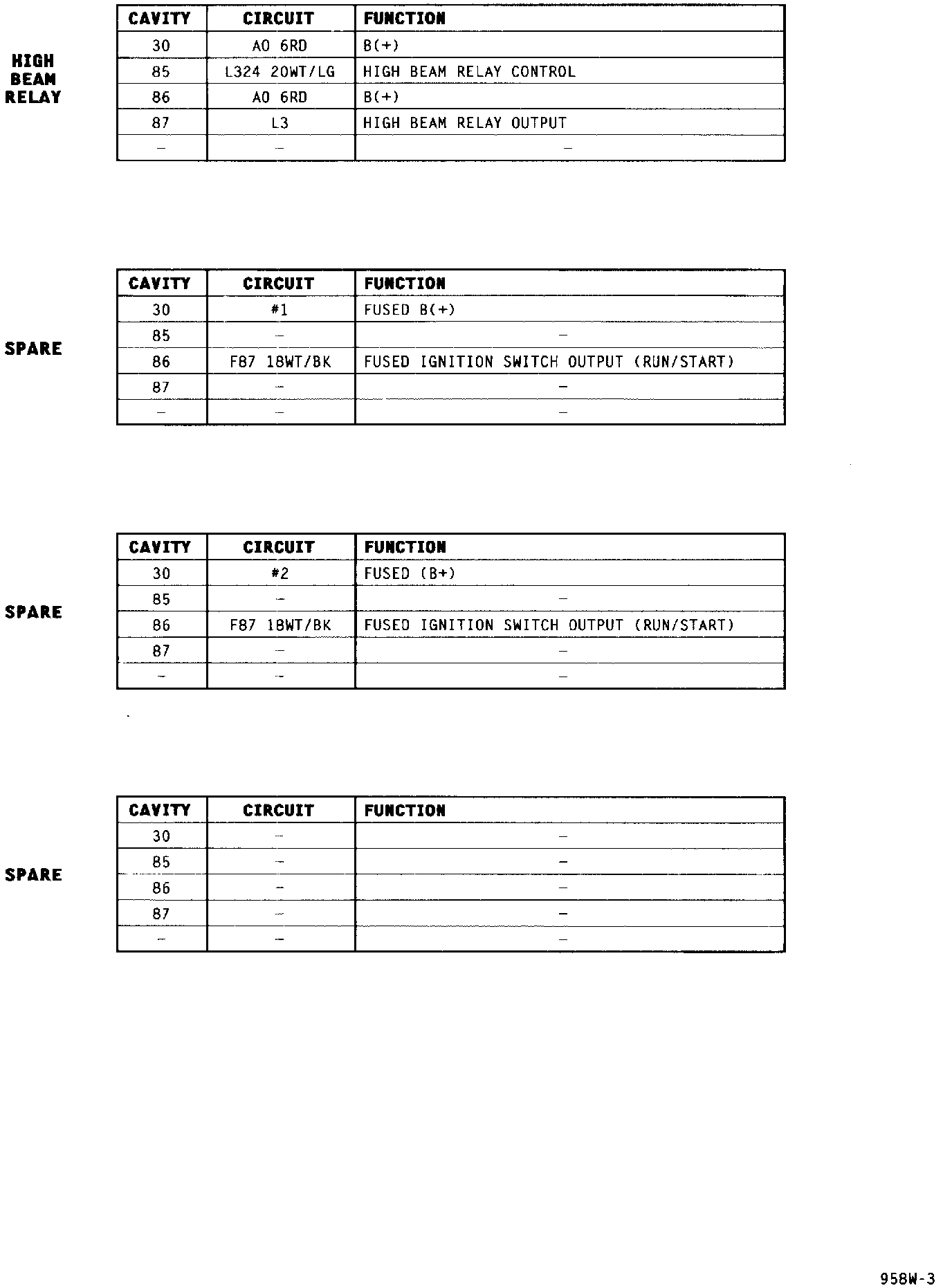

Power Distribution (Part 2 Of 5):

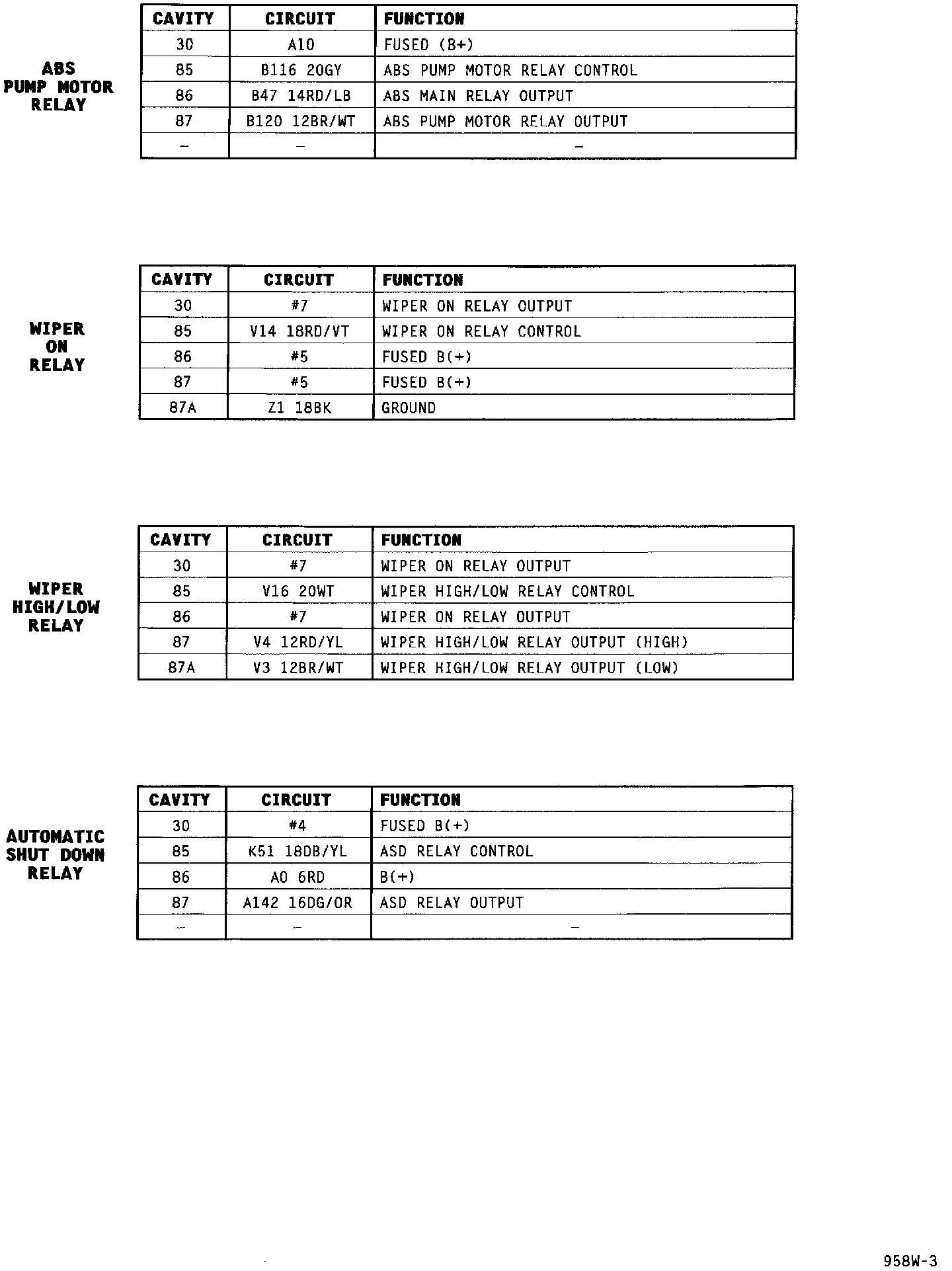

Power Distribution (Part 3 Of 5):
Power Distribution (Part 4 Of 5):
Power Distribution (Part 5 Of 5):
