Blower Motor Relay: Service and Repair

JUNCTION BLOCK

REMOVAL
(1) Disconnect battery negative cable.
(2) Remove lower steering column cover and knee blocker reinforcement.

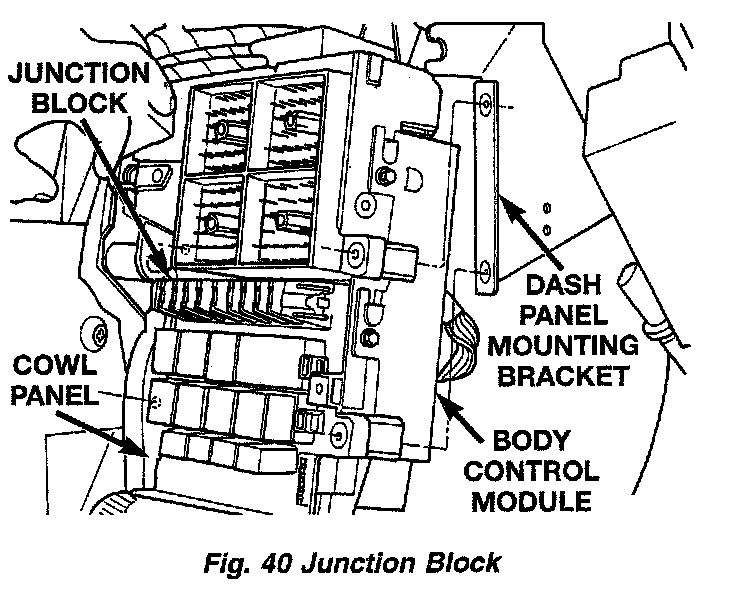

(3) Disconnect four, forty-way connectors from junction block (Fig. 40).
(4) Disconnect two wire connectors from bottom of body control module.
(5) Remove bolts holding junction block to dash panel mounting.
(6) Remove junction block from mounting bracket.
(7) Remove screws holding body control module to junction block.
(8) Slide body control module downward to disconnect guide studs on junction block from body control module mounting bracket
(9) Separate junction block from body control module

INSTALLATION
Reverse the preceding operation
