Cruise Control Servo: Service and Repair

Fig. 11 Speed Control Cable End:

REMOVAL
1. Release hood latch and open hood.
2. Disconnect the throttle and speed control cable ends from throttle body.

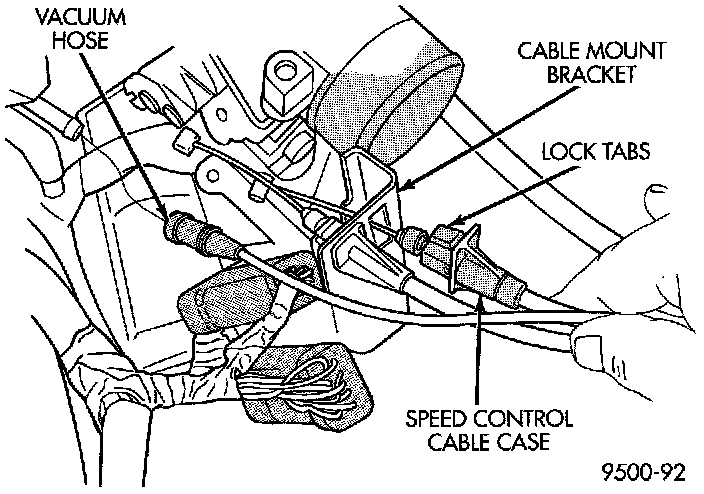

Fig. 12 Speed Control Cable Case and Vacuum Line- Typical:

3. Depress lock tabs holding speed control cable casing to cable mount bracket.
4. Disconnect vacuum line from nipple on air intake plenum.
5. Remove tie wrap holding vacuum line, throttle cable, and speed control cable together.

Speed Control Servo:

6. Remove bolt holding speed control servo to side of battery tray/vacuum reservoir.
7. Remove speed control servo from battery tray
8. Disconnect wire connector from speed control servo.
9. Disconnect vacuum line from speed control servo that leads to the battery tray/vacuum reservoir.
10. Remove speed control servo.

INSTALLATION
Transfer speed control cable to replacement speed control servo. Reverse the preceding operation.
