Operation CHARM
: Car repair manuals for everyone.
Home
>>
Dodge or Ram Truck
>>
2003
>>
Sprinter 3500 L5-2.7L DSL Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Pressure Regulating Solenoid, A/T
Pressure Regulating Solenoid, A/T

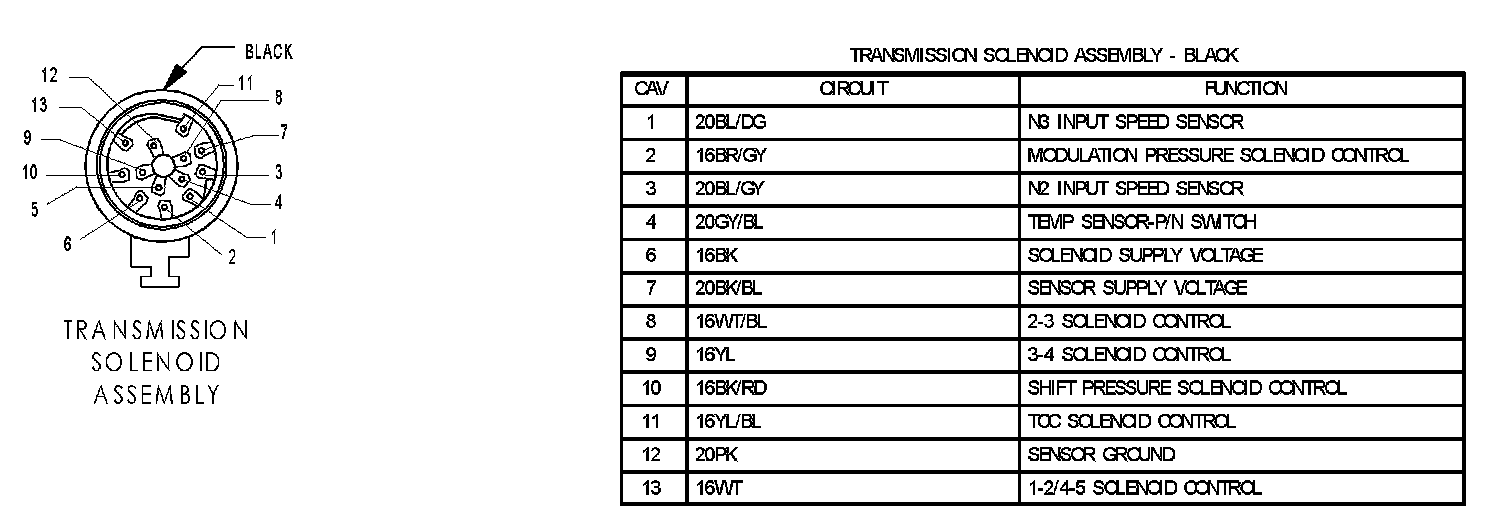

Transmission Solenoid Assembly:
