A/T - Flex Plate Replacement Precaution

NUMBER: 09-008-04 REV. A

GROUP: Engine

DATE: May 18, 2004

THIS BULLETIN SUPERSEDES TECHNICAL SERVICE BULLETIN 09-008-04, DATED MARCH 2, 2004, WHICH SHOULD BE REMOVED FROM YOUR FILES. ALL REVISIONS ARE HIGHLIGHTED WITH **ASTERISKS** AND INCLUDES REVISED PARTS NUMBERS.

SUBJECT:
Flex Plate Replacement

MODELS:

2002 - 2003 (VA) Sprinter

DISCUSSION:

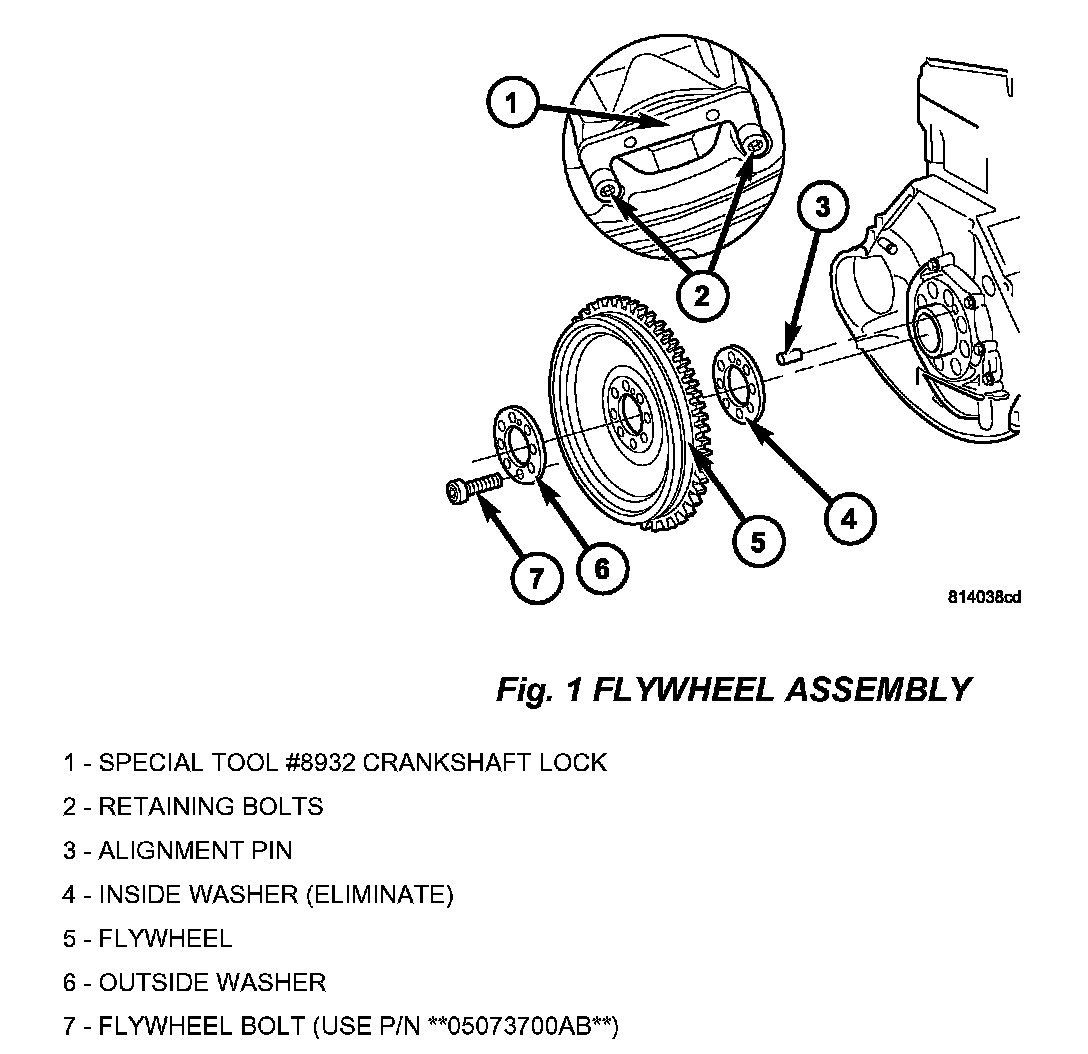

When replacing the flex plate in a 2002 or 2003 vehicle with the new updated flex plate (p/n **05137274AA**) and 8 new updated flywheel bolts (p/n **05073700AB**), remove and do not install the inside washer (Fig. 1).

POLICY:
Information Only

Disclaimer:
This bulletin is supplied as technical information only and is not an authorization for repair.
