Blower Motor Resistor: Service and Repair

REMOVAL

WARNING: ON VEHICLES EQUIPPED WITH AIR-BAGS, DISABLE THE AIRBAG SYSTEM BEFORE ATTEMPTING ANY STEERING WHEEL, STEERING COLUMN, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. DISCONNECT AND ISOLATE THE BATTERY NEGATIVE (GROUND) CABLE, THEN WAIT TWO MINUTES FOR THE AIRBAG SYSTEM CAPACITOR TO DISCHARGE BEFORE PERFORMING FURTHER DIAGNOSIS OR SERVICE. THIS IS THE ONLY SURE WAY TO DISABLE THE AIRBAG SYSTEM. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN AN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.

CAUTION: Stay clear of the blower motor resistor block heat sink (Hot). Do not operate the blower motor with the resistor block removed.

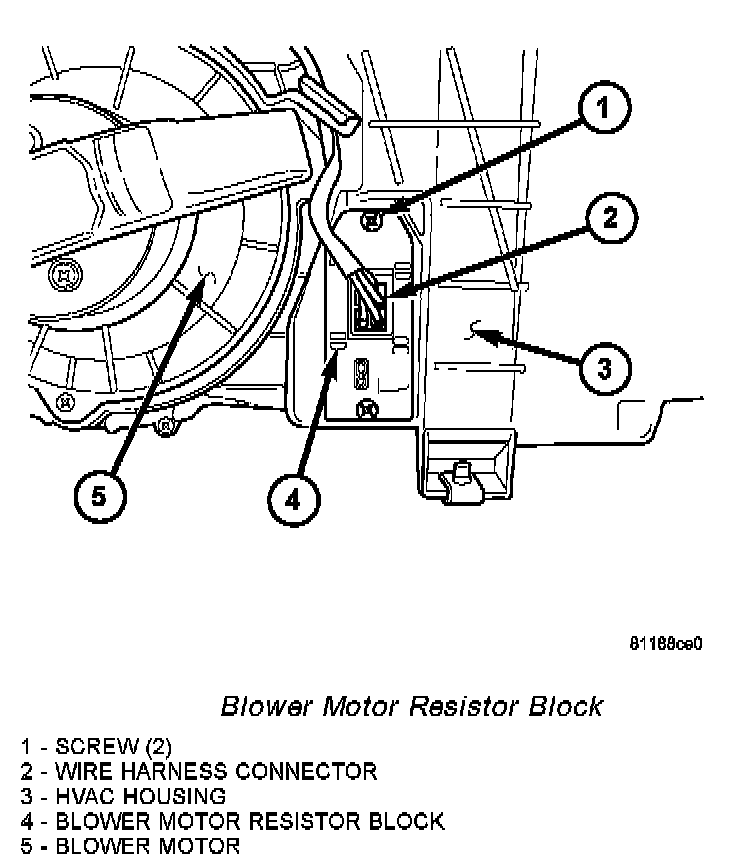

Blower Motor Resistor Block:

1. Disconnect and isolate the negative battery cable.
2. Reach under the instrument panel near the blower motor and disconnect the wire harness connector from the blower motor resistor block.
3. Remove the two screws that secure the blower motor resistor block to the HVAC housing.
4. Remove the resistor block from the HVAC housing.

INSTALLATION
1. Position the blower motor resistor block into the HVAC housing.
2. Install the two screws that secure the resistor block to the HVAC housing. Tighten the screws to 2.2 Nm (20 in. lbs.).
3. Connect the wire harness connector to the resistor block.
4. Reconnect the battery negative cable.
