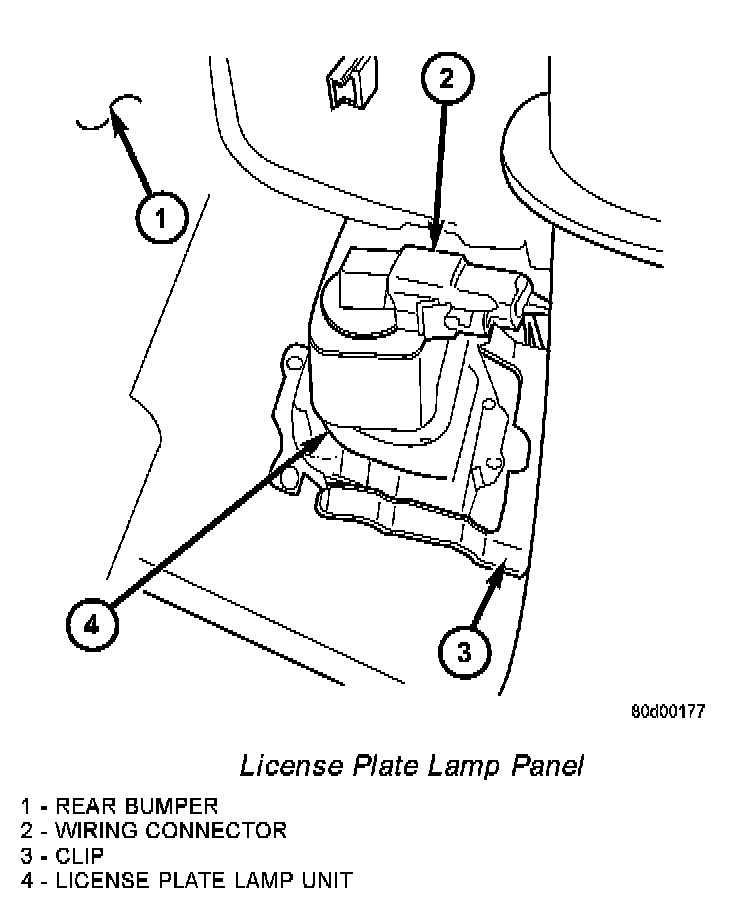

License Plate Lamp Unit Replacement

REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Disconnect the harness connector.
3. Remove the retaining clip.




4. Separate license plate lamp from vehicle.

INSTALLATION
1. Position license plate lamp on the bumper.
2. Install the clip.
3. Reconnect the harness connector.
4. Connect the battery negative cable.
