Body - Front Door Power Window Binding/Slow Operation
NUMBER: 23-029-04GROUP: Body
DATE: August 2, 2004
SUBJECT:
Front Power Window Binds
OVERVIEW:
This bulletin involves lubricating the window channel and installing a spacer under the outside mirror.
MODELS:
2004 (DR) Ram Truck
NOTE:
This bulletin applies to vehicles equipped with trailer tow mirrors, sales code GPD or GPG.
SYMPTOM/CONDITION:
Vehicles equipped with trailer tow mirrors may experience the power window on the front door binding or slow to operate.
DIAGNOSIS:
Operate the both front power windows. If a binding condition is present in either window, perform the Repair Procedure.

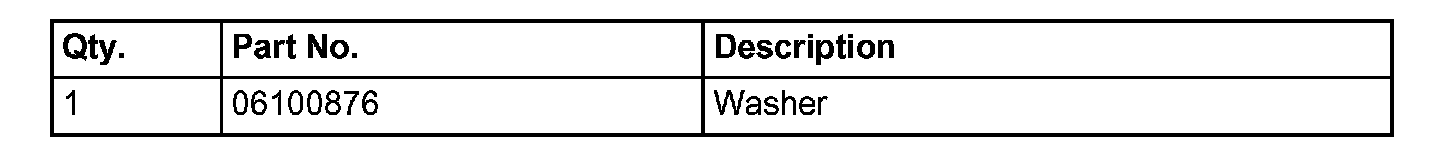

PARTS REQUIRED:
REPAIR PROCEDURE:
1. Separate the door trim panel from the door, leaving the wiring attached.
2. Lubricate the window run channels with MOPAR Silicone Spray Lube, p/n 04318070 or equivalent.
3. Separate the outside mirror from the door, leaving the wiring attached.
4. Install the mirror with washer, p/n 06100876, positioned over the lower rear stud on the mirror (Fig. 1). The washer should sit between the gasket and the body of the mirror. Tighten the nuts to 7 Nm (60 in. lbs.).
5. Install the door trim panel.
POLICY:
Reimbursable within the provisions of the warranty.

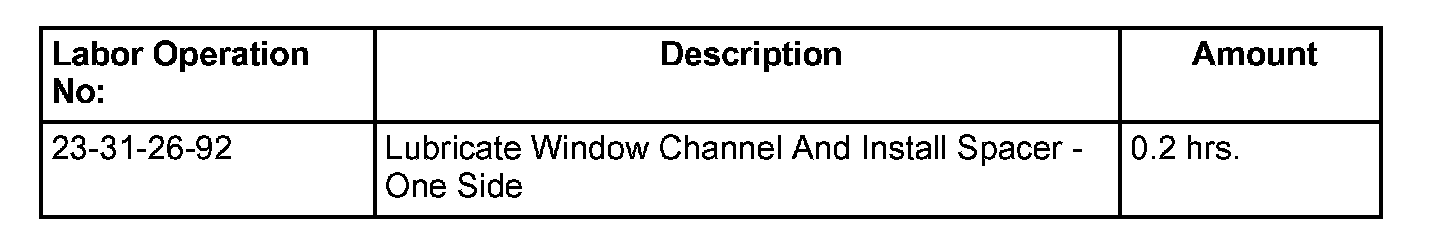

TIME ALLOWANCE:

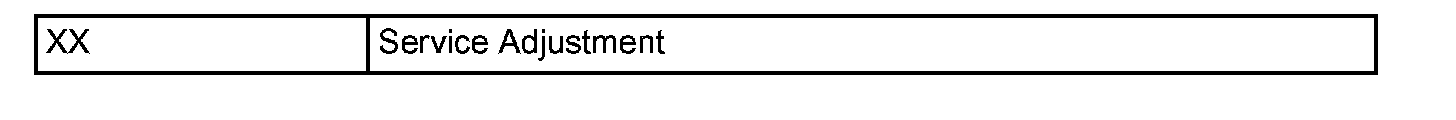

FAILURE CODE:
Disclaimer:
This bulletin is supplied as technical information only and is not an authorization for repair.
