Audio System - Crackle/Pop/Static Noise From Speakers
NUMBER: 08-002-06GROUP: Electrical
DATE: January 12, 2006
THIS BULLETIN IS BEING PROVIDED IN ADVANCE. DO NOT ORDER PARTS OR PERFORM ANY ACTIONS RELATED TO THIS BULLETIN UNTIL JANUARY 30, 2005.
SUBJECT:
Crackle/pop/Static From Audio System
OVERVIEW:
This bulletin involves replacing the 2 channel Audio Amplifier (AMP) and 8 channel AMP.
MODELS:
2004-2005 (DR) Ram Truck SRT10
SYMPTOM/CONDITION:
Crackle, pop, and static sounds heard from subwoofer speaker (most noticeable at key-on). Also reduced subwoofer output is possible.
DIAGNOSIS:
If the vehicle operator describes the Symptom(s) above, perform the Repair Procedure.

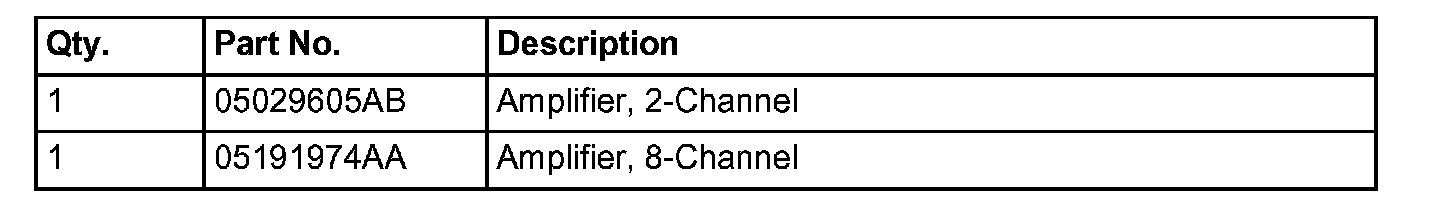

PARTS REQUIRED:
REPAIR PROCEDURE:
1. Use the procedures outlined in TechCONNECT 8-Electrical/Audio/Amplifier/Removal/Installation to replace the center seat mounted 2 channel audio amplifier and instrument panel mounted 8 channel amplifier.
POLICY:
Reimbursable within the provisions of the warranty.

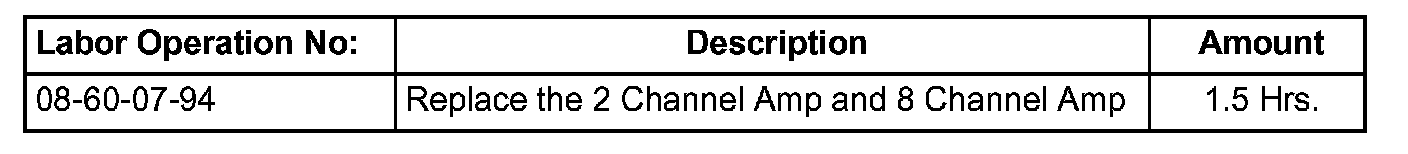

TIME ALLOWANCE:

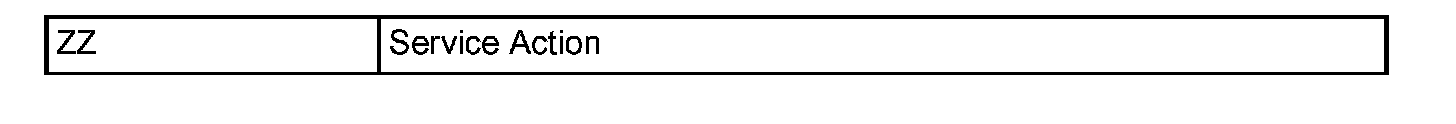

FAILURE CODE:
Disclaimer:
This bulletin is supplied as technical information only and is not an authorization for repair.
