Installation

T56 TRANSMISSION

INSTALLATION





1. Slide transmission back into the clutch and seat against clutch housing.
2. Install transmission bolts to clutch housing bolts and tighten to and tighten bolts to 35 Nm (26 ft. lbs.)

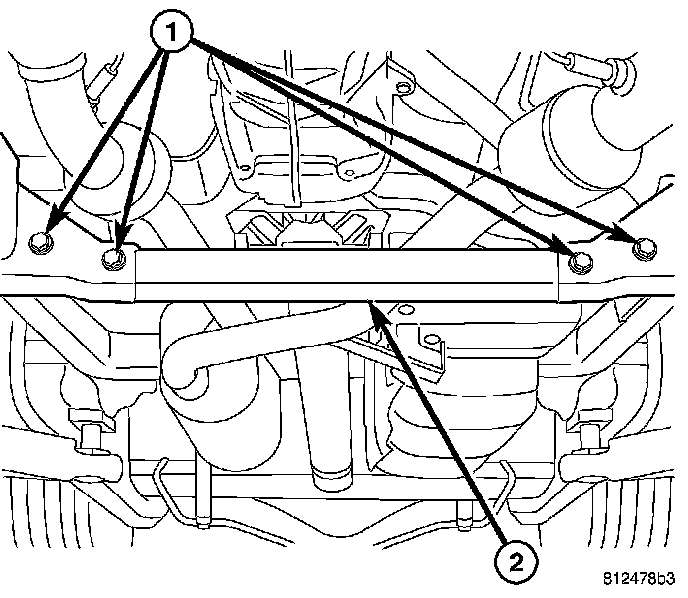

3. Install transmission crossmember (2) and bolts/nuts (1). Tighten nuts to 61 Nm (45 ft. lbs.).

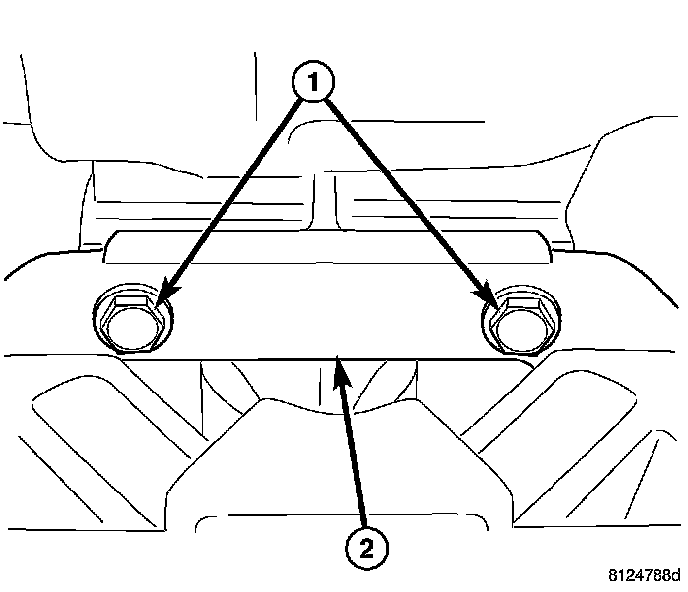

4. Install transmission mount (2) bolts (1) and tighten to 41 Nm (30 ft. lbs.).
5. Remove transmission jack.





6. Install back up lamp switch (2) connector (1).





7. Install fuel line to top plate stud.
8. Install reverse lockout solenoid (1) harness connector (2).





9. Install hydraulic clutch quick connector (1) to the slave cylinder.
10. Clean transmission shifter tower sealing surfaces and apply a bead of Mopar(R) Gasket Maker.
11. Install shifter tower and tighten bolts to 18 Nm (156 inch lbs.).
12. Install propeller shaft with reference marks aligned.

CAUTION: The drive shaft strap bolts must be replaced or cleaned and Loctite(R) 242 applied.

CAUTION: Replace drive shaft joint straps whenever they are removed. The straps slightly deform when torqued in place. Reuse of the straps may result in reduced clamp load on the universal joint cap.
