P2015

Test 1 - 3:

Test 4 - 6:

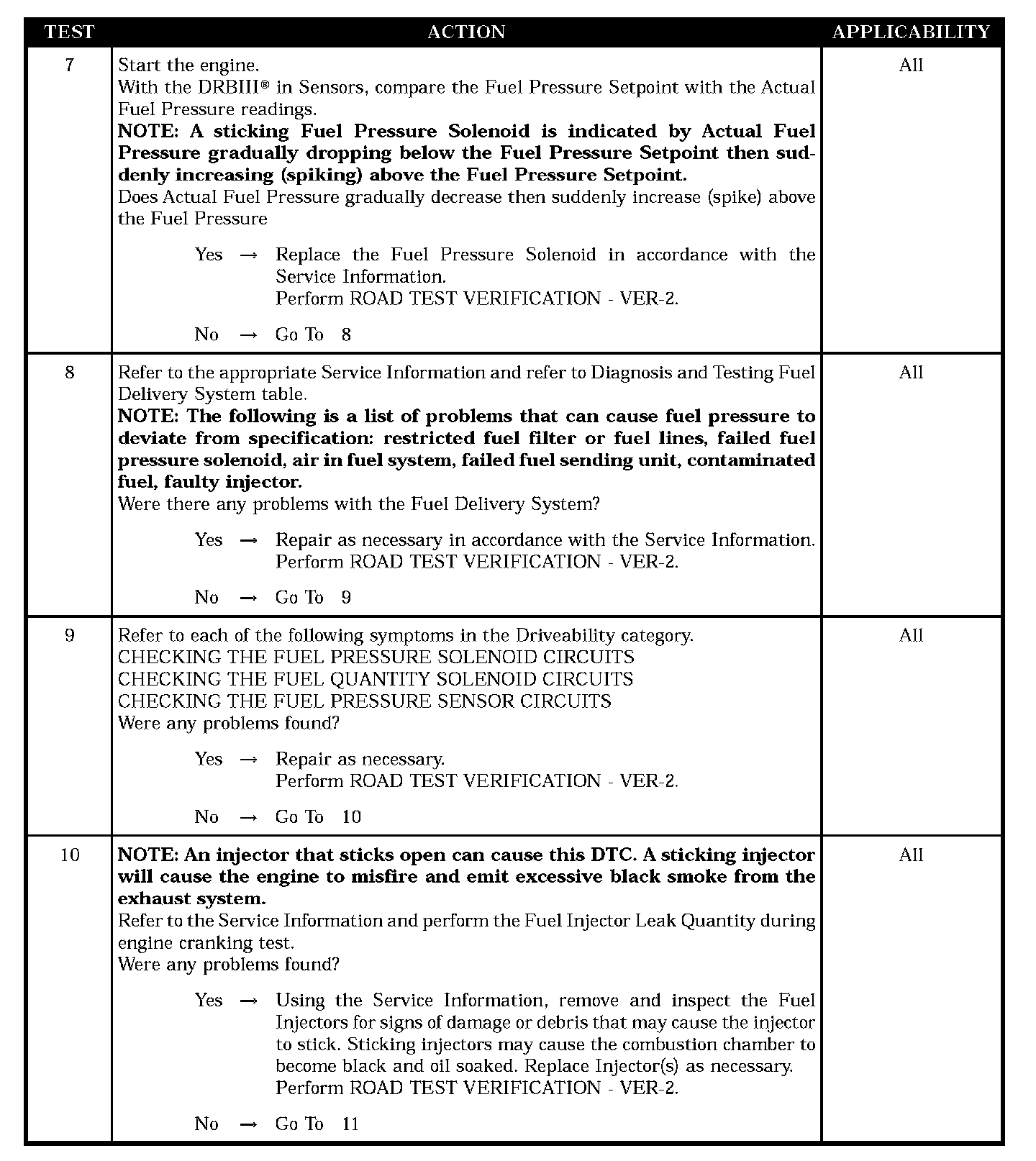

Test 7 - 10:

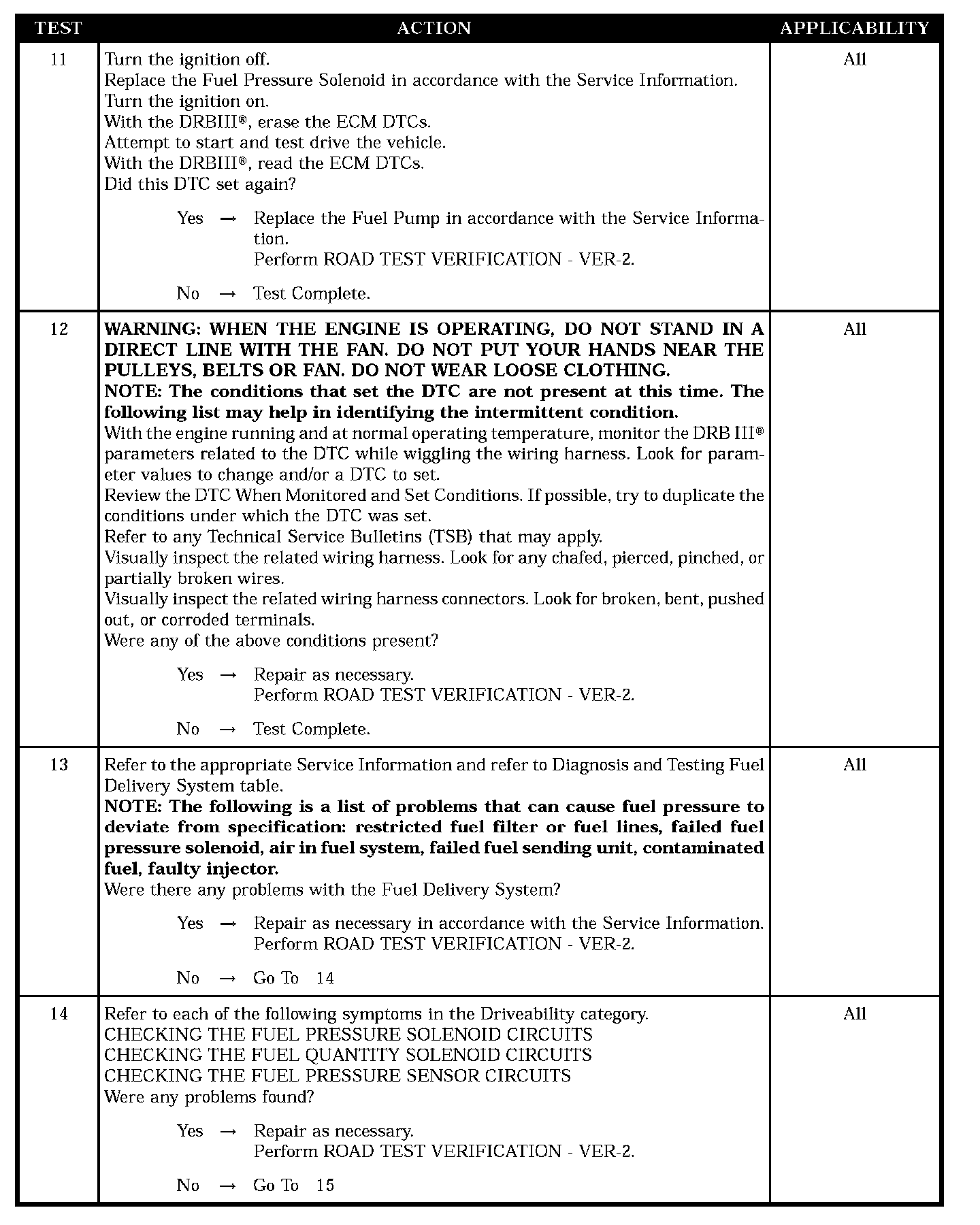

Test 11 - 14:

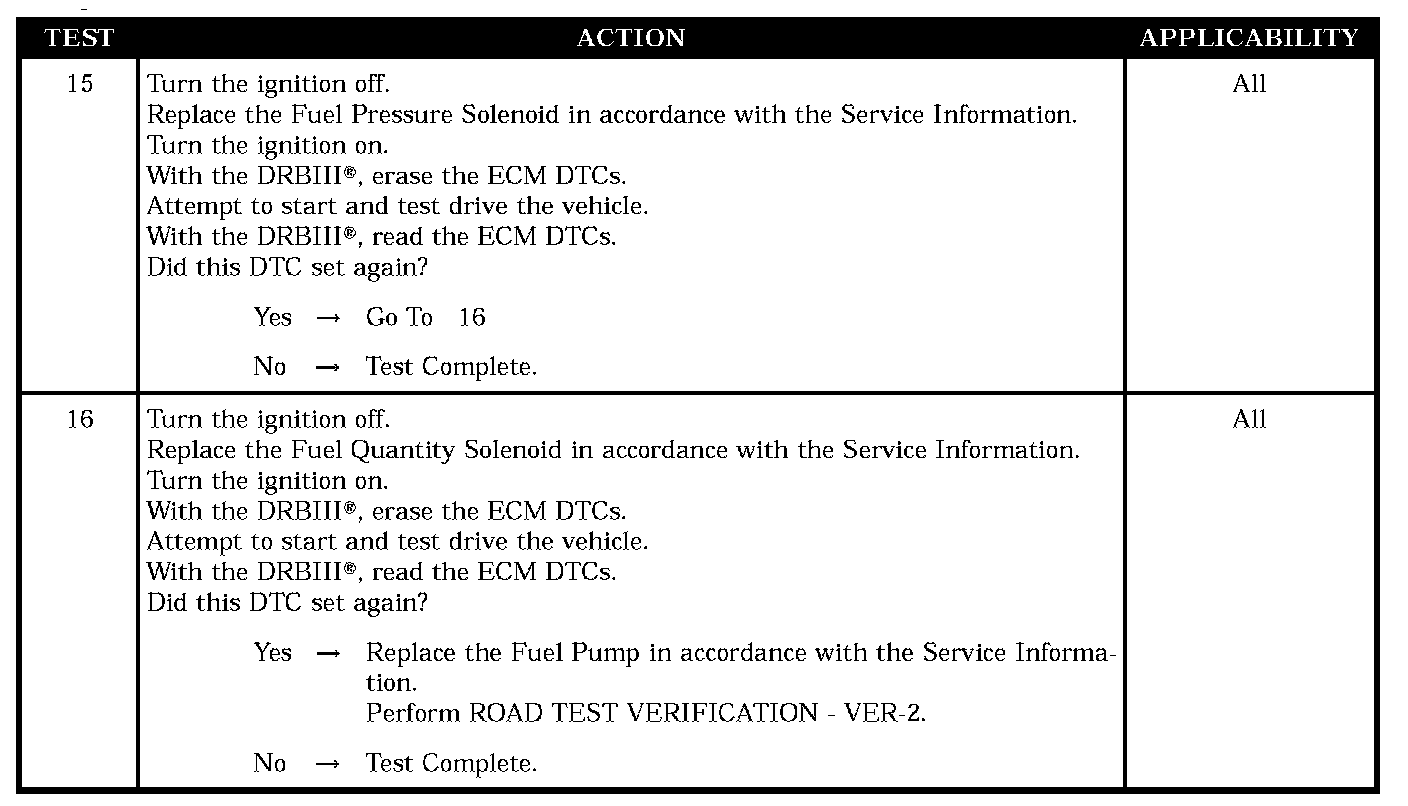

Test 15 - 16:

SYMPTOM
P2015 - FUEL RAIL PRESSURE MALFUNCTION MAXIMUM FUEL FLOW EXCEEDED

POSSIBLE CAUSES
- Air in fuel system
- Checking electrical circuits - engine running
- Checking electrical circuits - no start
- Checking for other DTC's
- Checking the fuel delivery system
- Checking the fuel delivery system
- Fuel injector(s)
- Fuel pressure solenoid
- Fuel pressure solenoid
- Fuel pump
- Fuel pump
- Fuel system contamination
- Fuel system leak
- Intermittent condition
