Home >> Dodge or Ram Truck >> 2004 >> Sprinter 3500 L5-2.7L DSL Turbo >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Locations

Antitheft and Alarm Systems: Locations

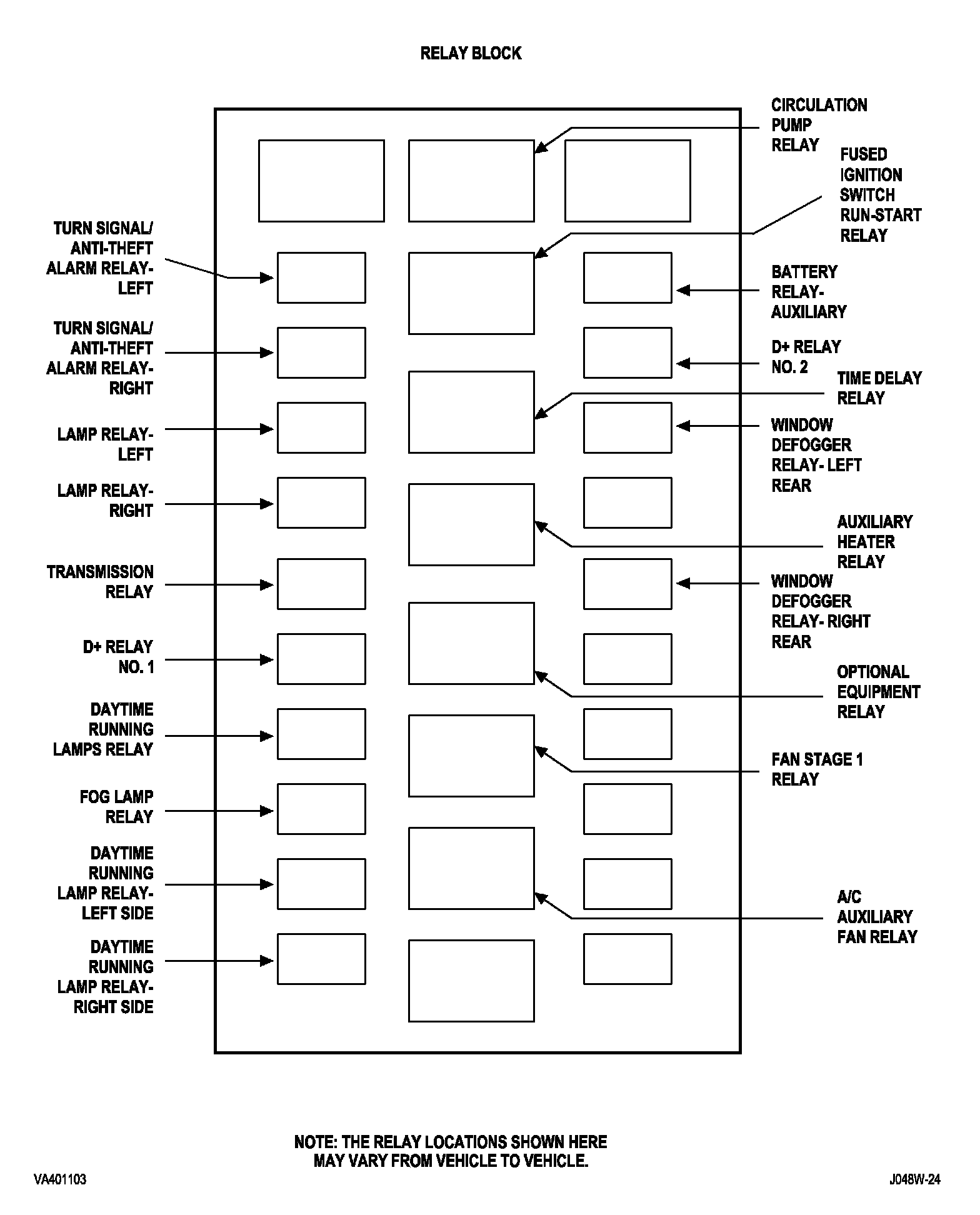

Relay Block:



Lamp Relay - Left:

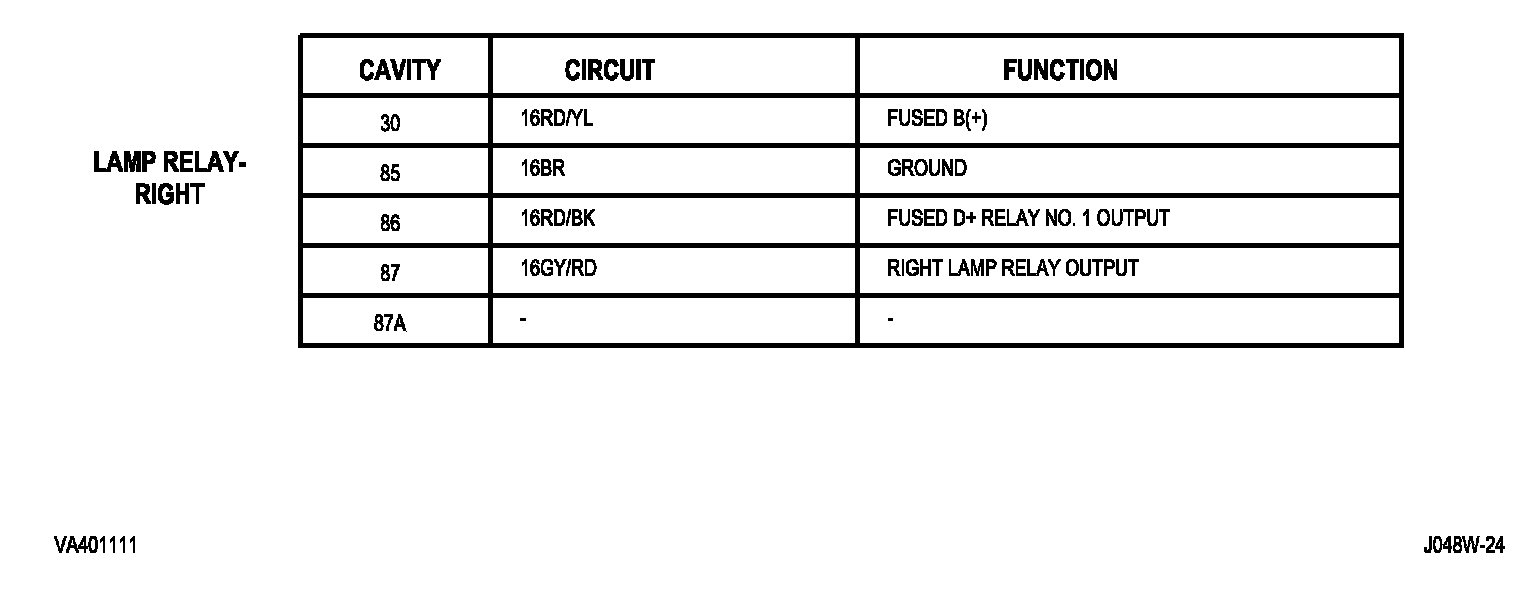

Lamp Relay - Right:
