Auxiliary Cabin Heater: Diagrams

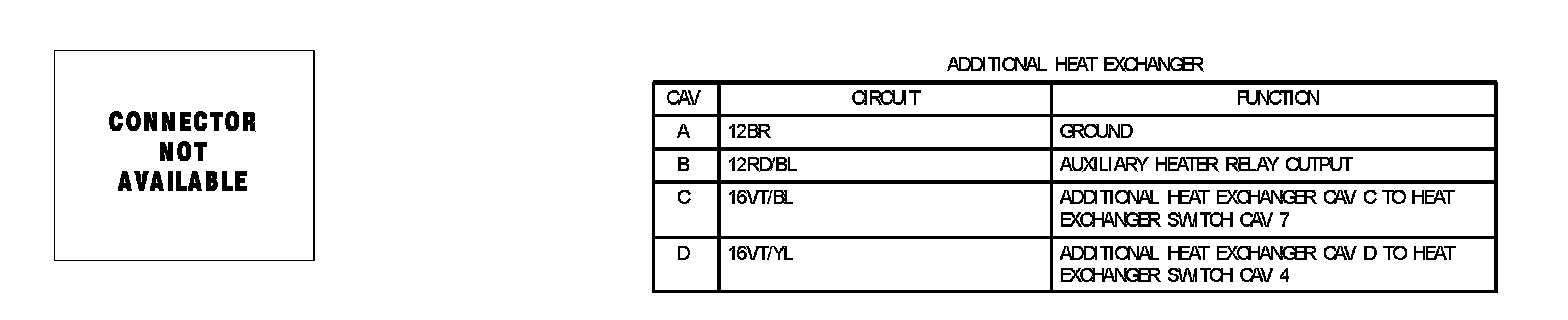

Additional Heat Exchanger:
Cabin Heater Assembly:
Warm Air Auxiliary Heater Assembly C1:

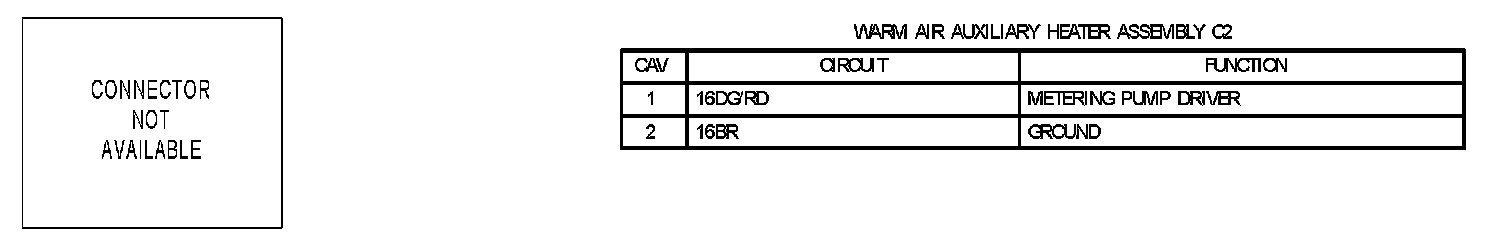

Warm Air Auxiliary Heater Assembly C2:
