Blower Motor Resistor: Diagrams

Blower Motor Resistor Block:

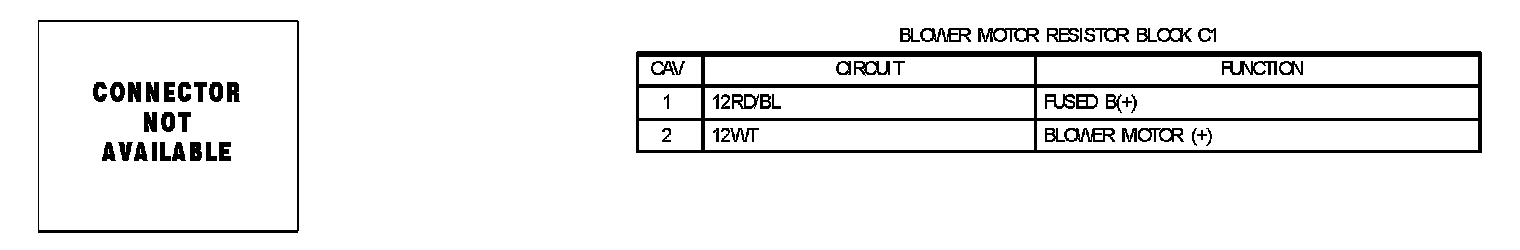

Blower Motor Resistor Block C1:

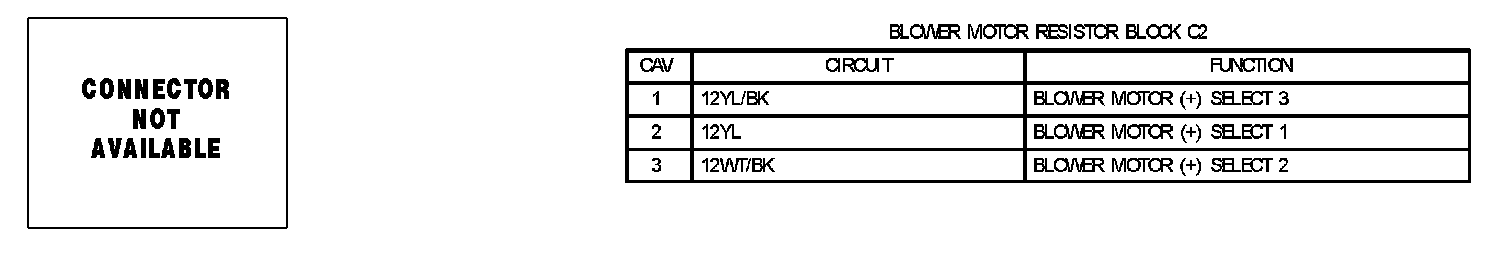

Blower Motor Resistor Block C2:

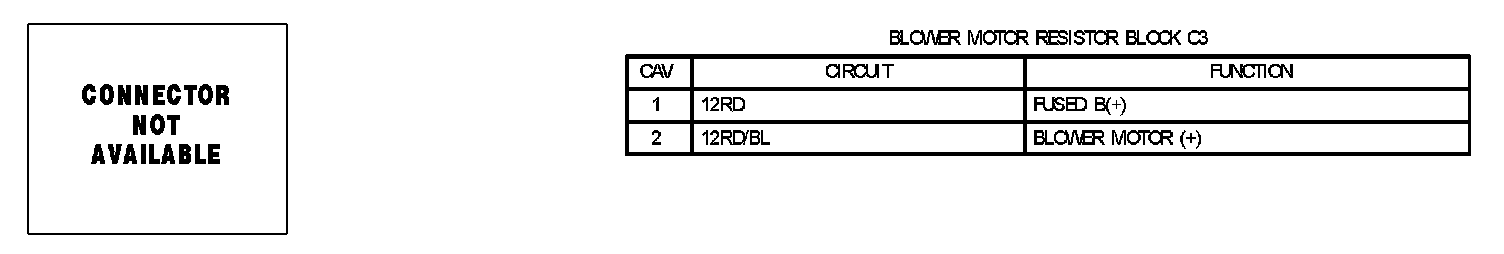

Blower Motor Resistor Block C3:
