Dodge or Ram Truck
>>
2006
>>
Sprinter 3500 L5-2.7L DSL Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag
Air Bag

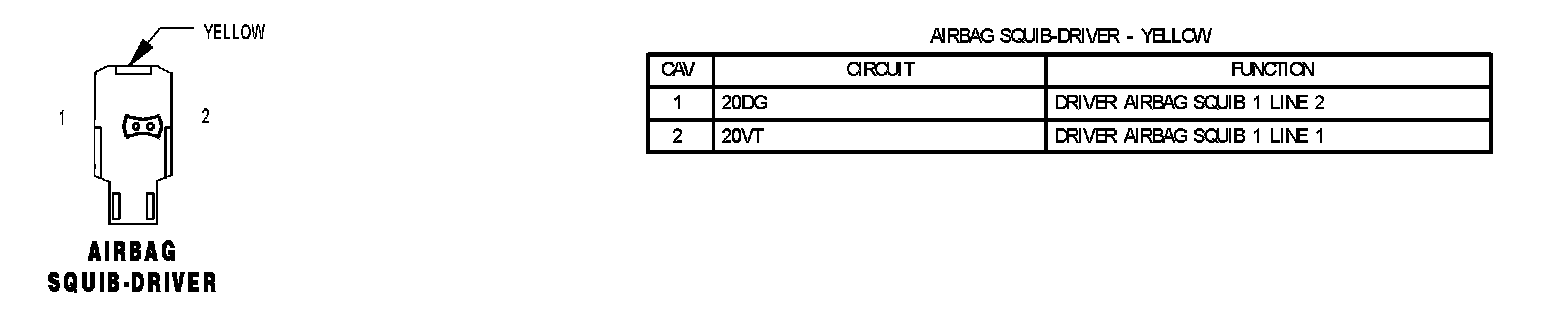

Airbag Squib - Driver:

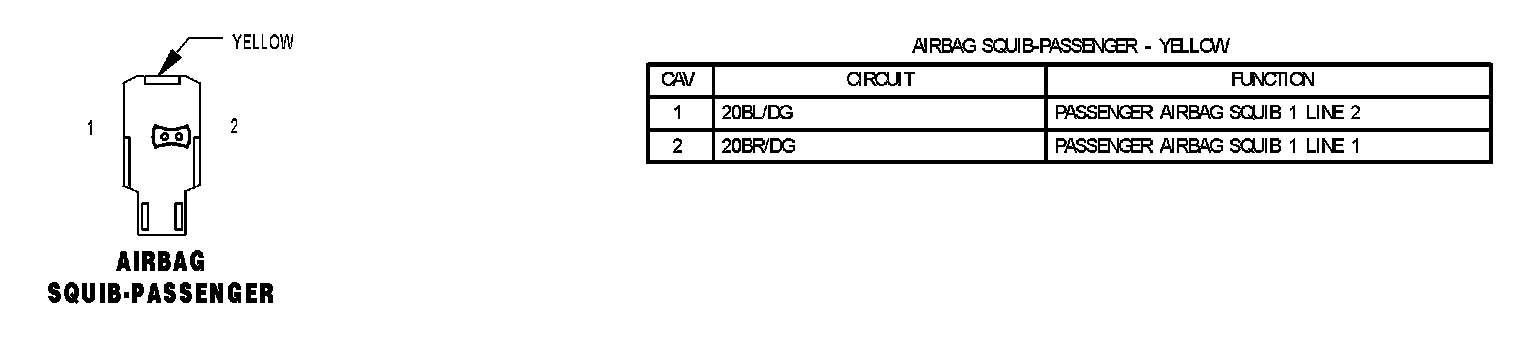

Airbag Squib - Passenger:
