Air Bag Control Module
Component ID: 167
Component : MODULE-OCCUPANT RESTRAINT CONTROLLER
Connector:
Name : MODULE-OCCUPANT RESTRAINT CONTROLLER C1
Color : YELLOW
# of pins : 32
Pin Description Circuit
1 DRIVER SEAT BELT TENSIONER LINE 2 R53 20LG/YL
2 DRIVER SEAT BELT TENSIONER LINE 1 R55 20LG/DG
3 PASSENGER SEAT BELT TENSIONER LINE 1 R56 20LB/DG
4 PASSENGER SEAT BELT TENSIONER LINE 2 R54 20LB/YL
5 - -
6 - -
7 - -
8 - -
9 - -
10 - -
11 - -
12 - -
13 DRIVER SEAT POSITION SENSOR DATA R261 20LB/WT
14 - -
15 LEFT SIDE IMPACT SENSOR 1 SIGNAL R13 20LG/VT
16 RIGHT SIDE IMPACT SENSOR 1 GROUND R16 20BR/LG
17 DRIVER SEAT POSITION SENSOR VOLTAGE R263 20LB/VT
18 - -
19 LEFT SIDE IMPACT SENSOR 1 GROUND R15 20LG/BR
20 GROUND Z104 20BK/LG
21 - -
22 - -
23 - -
24 RIGHT SIDE IMPACT SENSOR 1 SIGNAL R14 20TN/LG
25 LEFT CURTAIN SQUIB 1 LINE 2 R1 18LB/WT
26 LEFT CURTAIN SQUIB 1 LINE 1 R3 18LB/OR
27 RIGHT CURTAIN SQUIB 1 LINE 1 R4 18OR/LB
28 RIGHT CURTAIN SQUIB 1 LINE 2 R2 18WT/LB
29 - -
30 - -
31 - -
32 - -

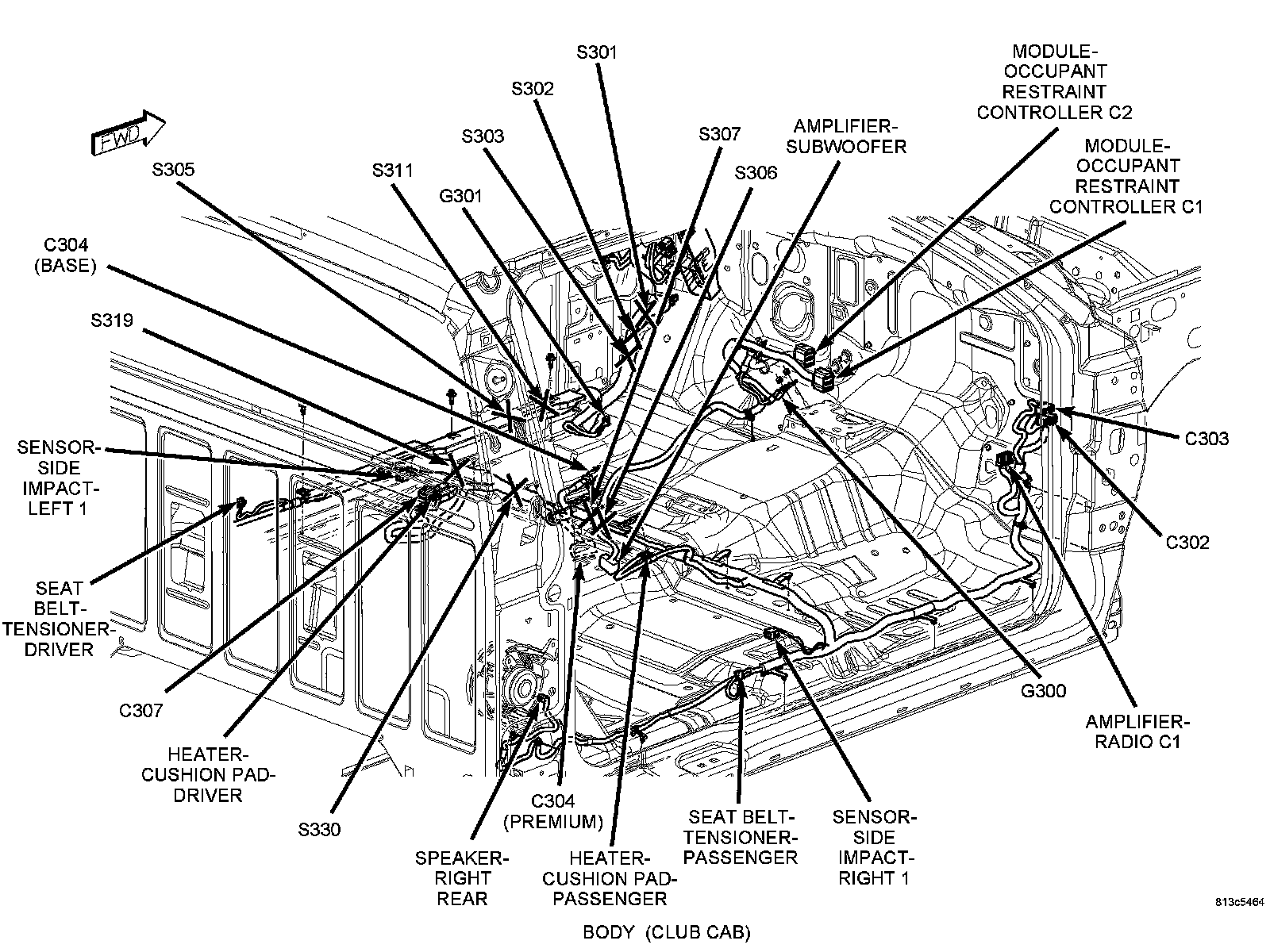

Component Location - 22
Component Location - 31
Component Location - 32
Connector:

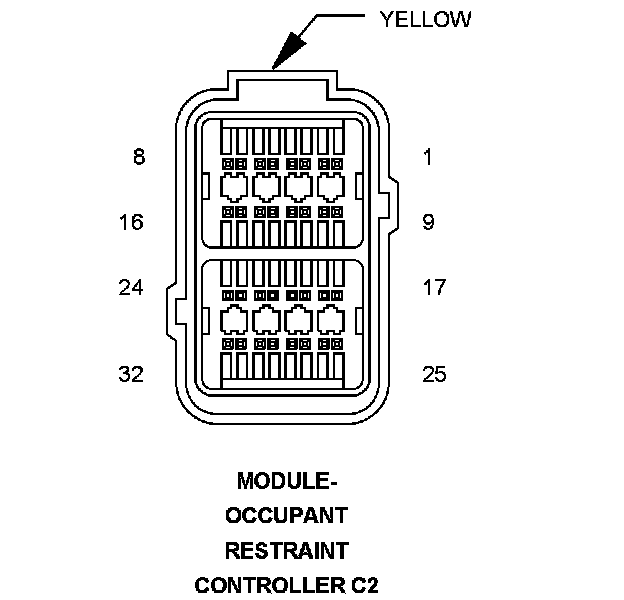

Name : MODULE-OCCUPANT RESTRAINT CONTROLLER C2
Color : YELLOW
# of pins : 32
Pin Description Circuit
1 DRIVER SQUIB 1 LINE 2 R43 20LG/BR
2 DRIVER SQUIB 1 LINE 1 R45 20LG/OR
3 DRIVER SQUIB 2 LINE 1 R63 20LG/WT
4 DRIVER SQUIB 2 LINE 2 R61 20LG/VT
5 PASSENGER SQUIB 1 LINE 2 R42 20LB/BR
6 PASSENGER SQUIB 1 LINE 1 R44 20LB/OR
7 PASSENGER SQUIB 2 LINE 1 R64 20LB/WT
8 PASSENGER SQUIB 2 LINE 2 R62 20LB/VT
9 PASSENGER AIRBAG INDICATOR DRIVER G104 20VT/GY
10 - -
11 - -
12 RIGHT FRONT IMPACT SENSOR GROUND R82 20WT/LB
13 - -
14 - -
15 CAN B BUS(+) D55 20WT/OR
16 FUSED IGNITION SWITCH OUTPUT (RUN-START) F201 20PK/OR
17 - -
18 - -
19 PASSENGER AIRBAG MUX SWITCH RETURN R104 20LB/LG
20 LEFT FRONT IMPACT SENSOR GROUND R81 20LB/WT
21 - -
22 - -
23 CAN B BUS(-) D54 20WT
24 FUSED IGNITION SWITCH OUTPUT (RUN) F100 20PK/VT
25 LEFT FRONT IMPACT SENSOR SIGNAL R79 20LB/VT
26 RIGHT FRONT IMPACT SENSOR SIGNAL R80 20VT/LB
27 PASSENGER AIRBAG MUX SWITCH SENSE R106 20LG/LB
28 - -
29 - -
30 - -
31 - -
32 - -

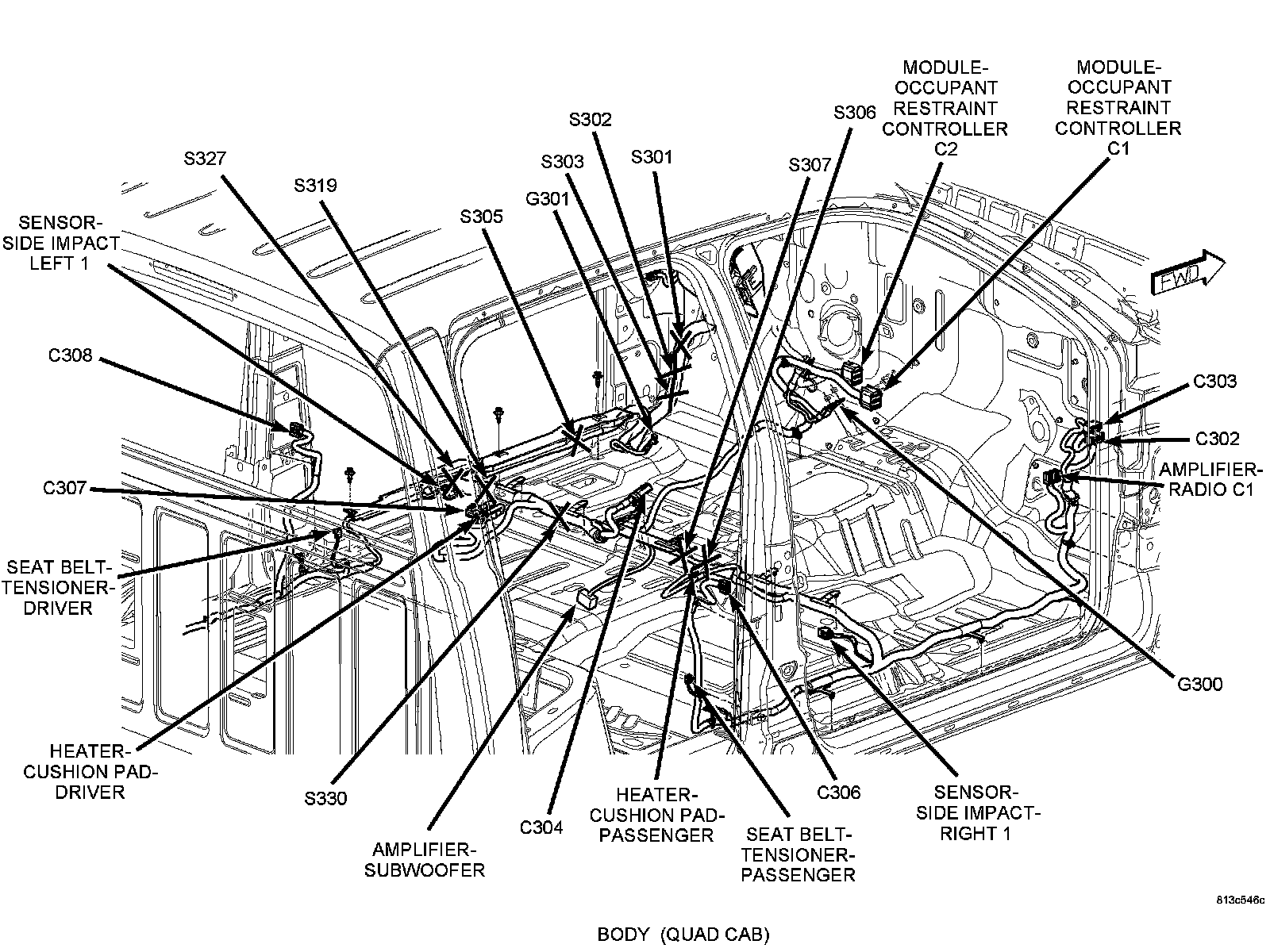

Component Location - 22
Component Location - 31
Component Location - 32
