Backup Lamp Switch

Component ID: 315

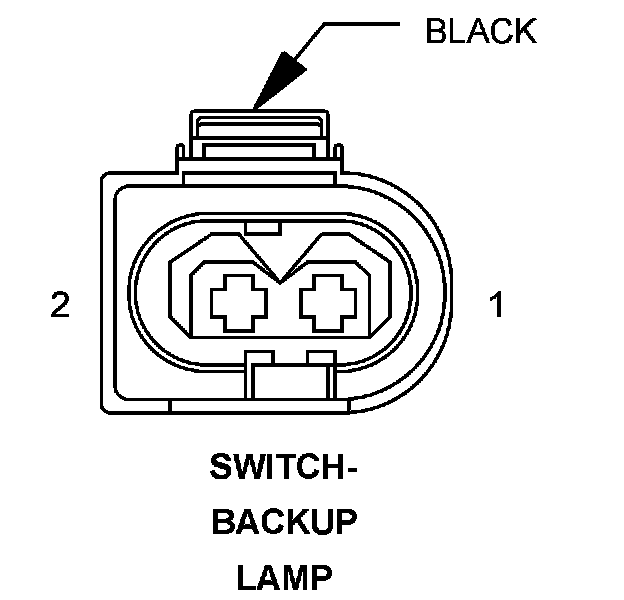

Component : SWITCH-BACKUP LAMP

Connector:
Name : SWITCH-BACKUP LAMP
Color : BLACK
# of pins : 2




Pin Description Circuit
1 LOW/REVERSE SOLENOID CONTROL T2 20DG/WT
2 GROUND Z906 20BK

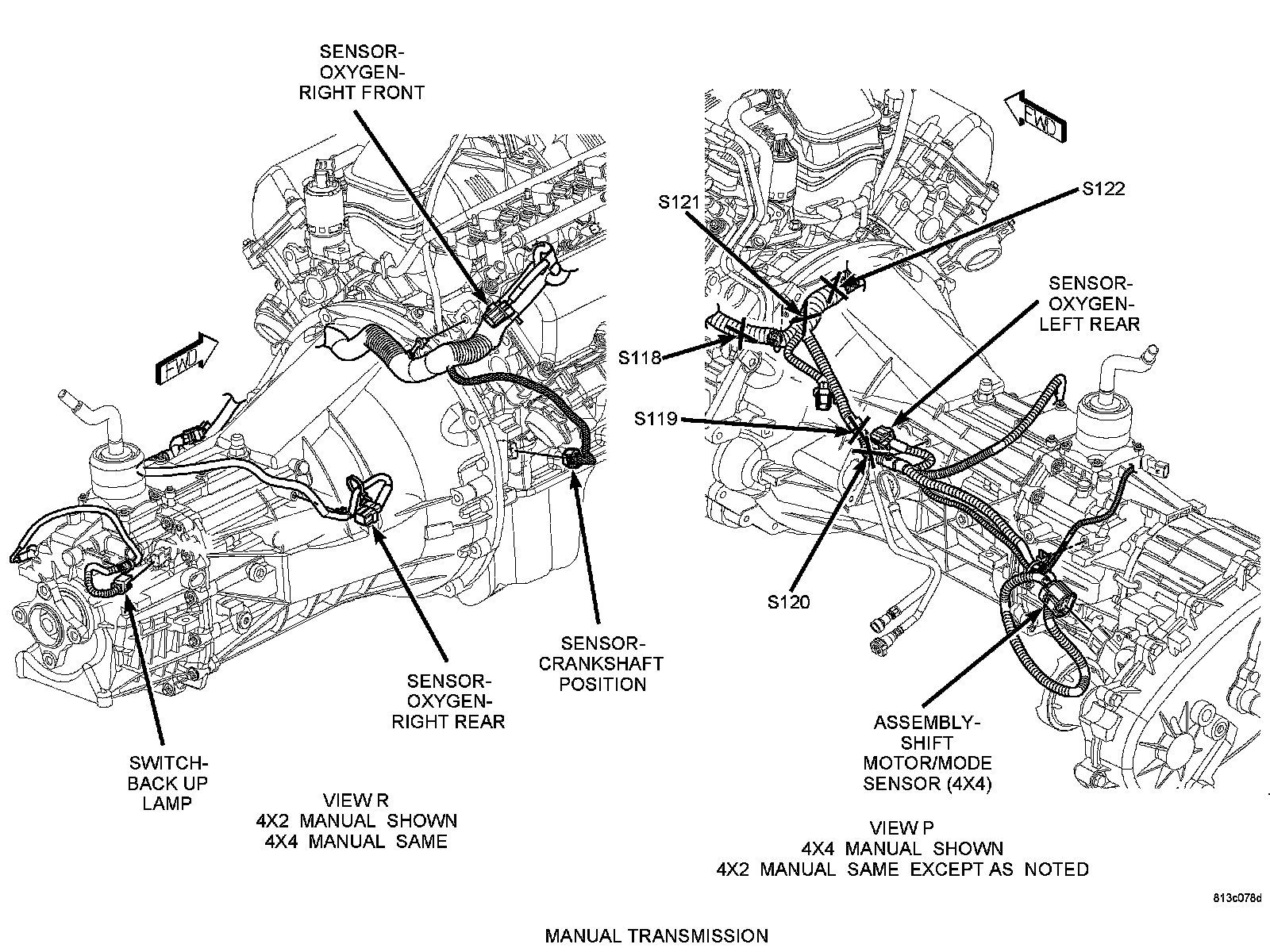

Component Location - 15
