Sensor-Input Speed

Component ID: 281
Component : SENSOR-INPUT SPEED

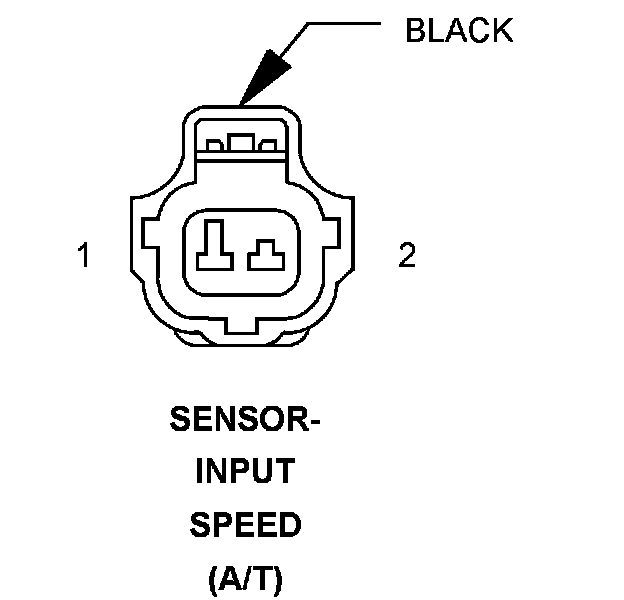

Connector:
Name : SENSOR-INPUT SPEED
Color : BLACK
# of pins : 2
Qualifier : (A/T)




Pin Description Circuit
1 INPUT SPEED SIGNAL T52 20YL/WT
2 SENSOR GROUND T13 20DG/VT

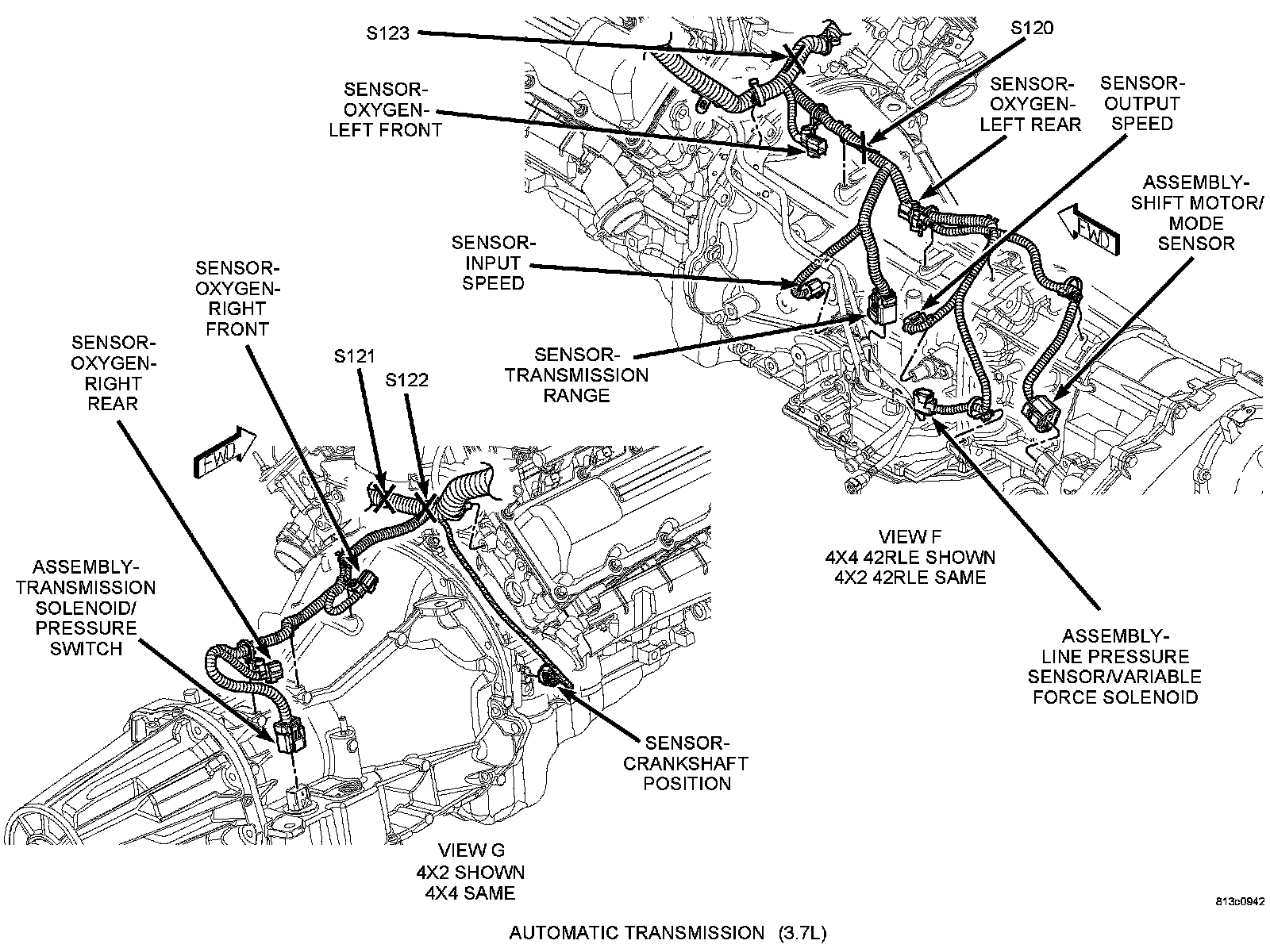

Component Location - 14




Component Location - 18
