Sensor-Wheel Speed-ABS-Right Front

Component ID: 302

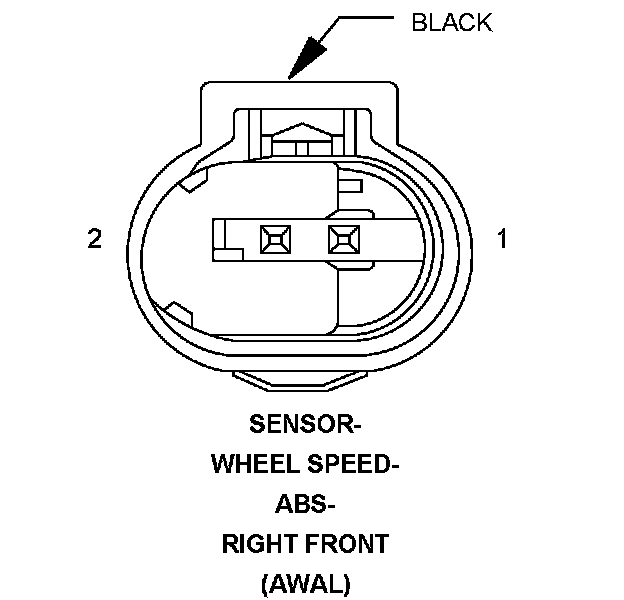

Component : SENSOR-WHEEL SPEED-ABS-RIGHT FRONT

Connector:
Name : SENSOR-WHEEL SPEED-ABS-RIGHT FRONT
Color : BLACK
# of pins : 2
Qualifier : (AWAL)




Pin Description Circuit
1 RIGHT FRONT WHEEL SPEED SENSOR SIGNAL B6 20DG/WT
2 RIGHT FRONT WHEEL SPEED SENSOR SUPPLY B7 20DG/VT

Component Location - 3
