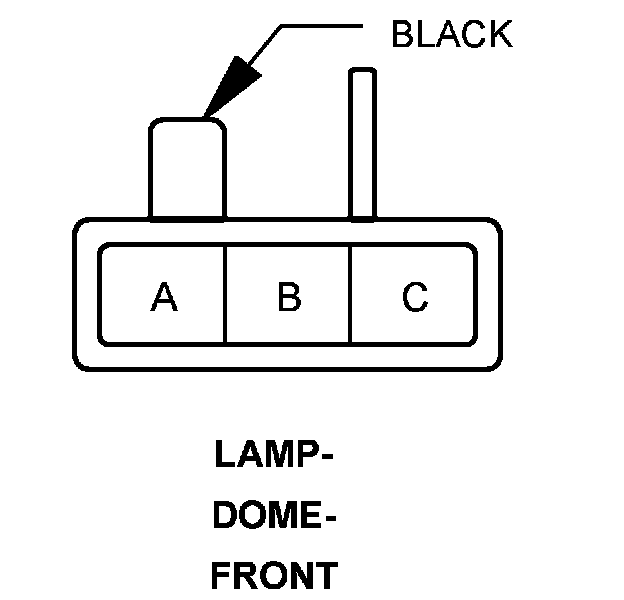

Lamp-Dome-Front

Component ID: 138
Component : LAMP-DOME-FRONT

Connector:
Name : LAMP-DOME-FRONT
Color : BLACK
# of pins : 3




A GLOVE BOX LAMP DRIVER M28 20YL/TN
B GROUND Z955 20BK
C COURTESY LAMPS DRIVER M22 20YL/OR
