Ambient Temperature Sensor / Switch HVAC

Component ID: 362
Component : SENSOR-AMBIENT AIR TEMPERATURE

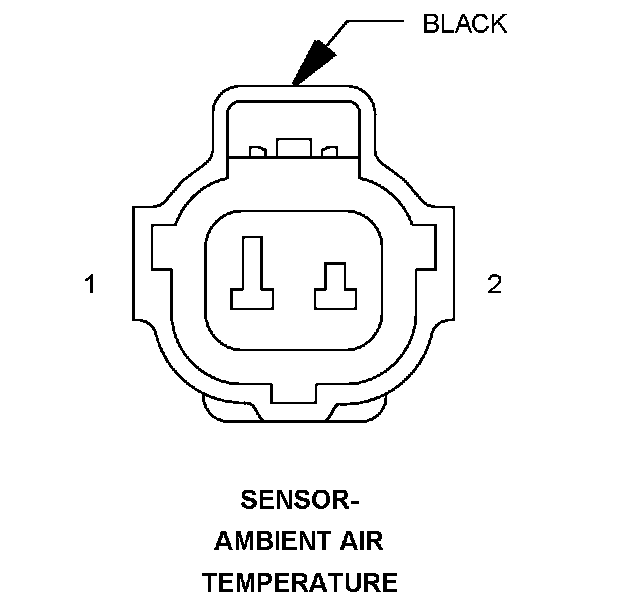

Connector:
Name : SENSOR-AMBIENT AIR TEMPERATURE
Color : BLACK
# of pins : 2




Pin Description Circuit
1 AAT SIGNAL G31 18VT/LG
2 AAT RETURN G931 18VT/BR

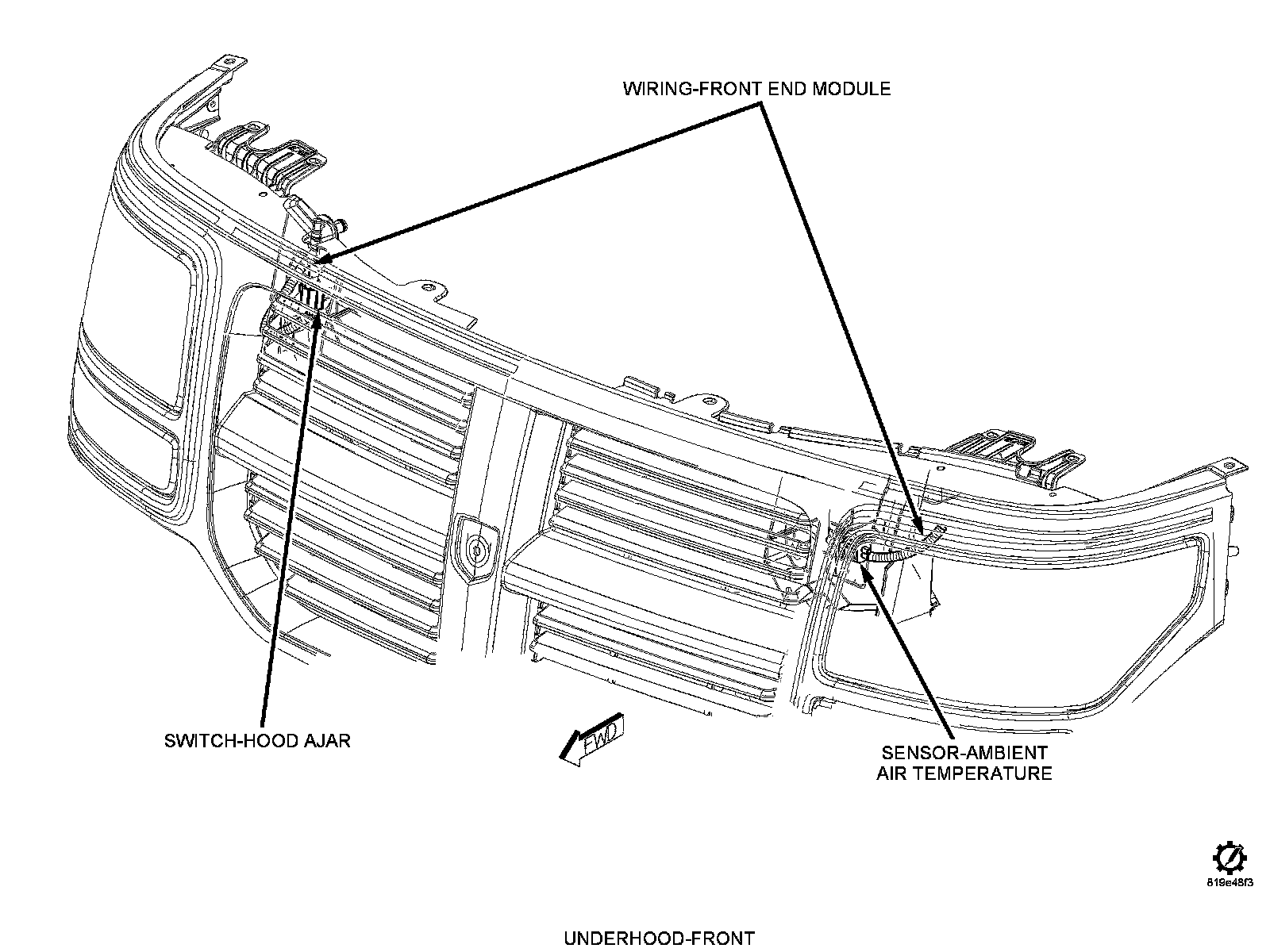

Component Location - 1
