Cigarette Lighter

Component ID: 178

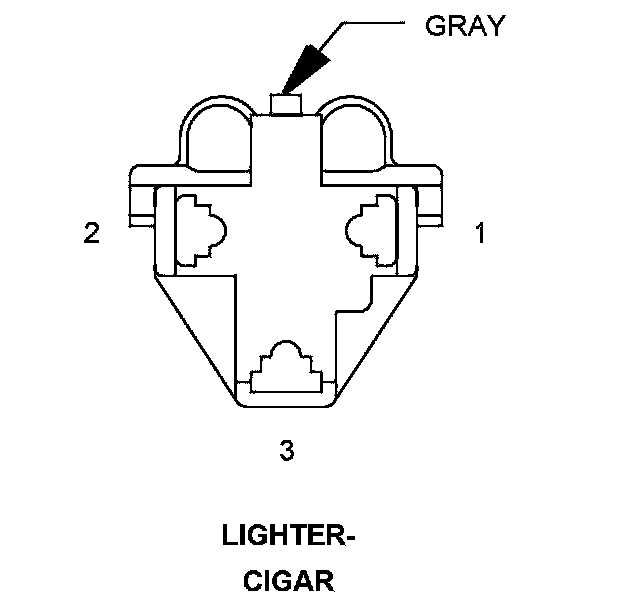

Component : LIGHTER-CIGAR

Connector:
Name : LIGHTER-CIGAR
Color : GRAY
# of pins : 3




Pin Description Circuit
1 FUSED RUN/ACCESSORY RELAY OUTPUT F306 18DB/PK
2 - -
3 GROUND Z911 18BK/WT

Component Location - 43




Component Location - 48
