Data Link Connector

Component ID: 65

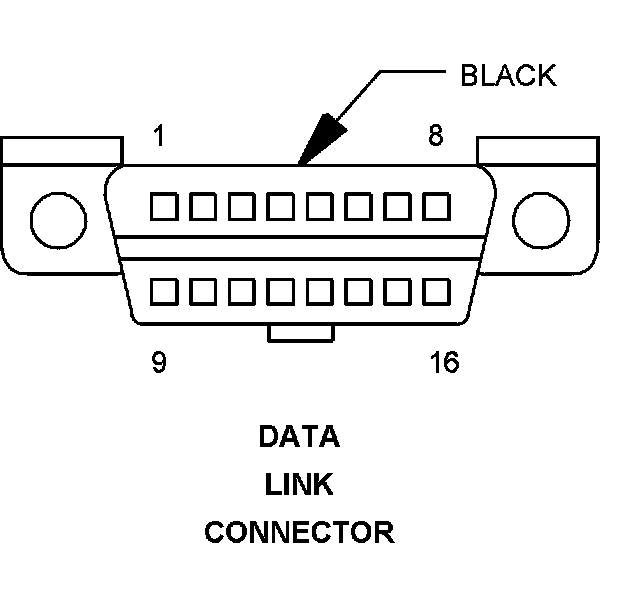

Component : DATA LINK CONNECTOR

Connector:
Name : DATA LINK CONNECTOR
Color : BLACK
# of pins : 16
Gender : FEMALE




Pin Description Circuit
1 CAN C BUS (500K) (+) TEMPORARY D65 20WT/LG
2 - -
3 - -
4 GROUND Z910 18BK/LG
5 GROUND Z910 18BK/YL
6 DIAGNOSTIC CAN C (+) D72 20WT/LB
7 SCI TRANSMIT (ECM/PCM) D21 20WT/BR
8 - -
9 - -
10 - -
11 - -
12 - -
13 CAN C BUS (500K) (-) TEMPORARY D64 20WT/LB
14 DIAGNOSTIC CAN C (-) D71 20WT/DB
15 - -
16 FUSED B(+) A901 18RD

Component Location - 41

Fig. 41:

Component Location - 45
