Neutral Safety Switch

Component ID: 432

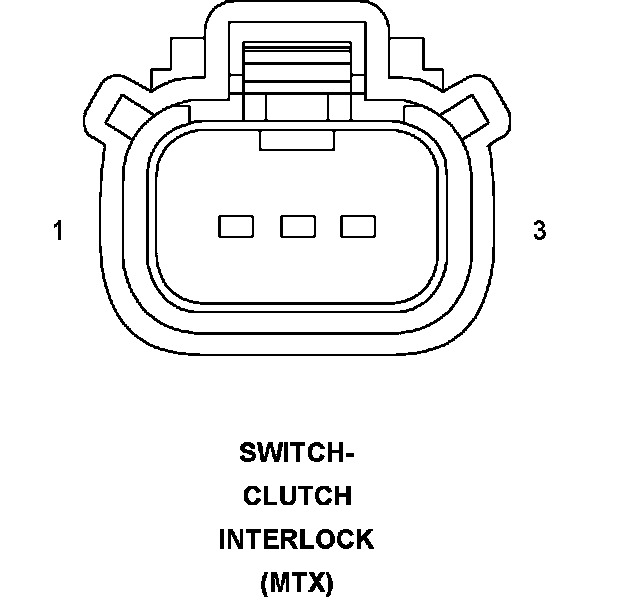

Component : SWITCH-CLUTCH INTERLOCK

Connector:
Name : SWITCH-CLUTCH INTERLOCK
Color :
# of pins : 3
Qualifier : (MTX)




Pin Description Circuit
1 CLUTCH UPSTOP SIGNAL T26 20DG/OR
Pin Description Circuit
1 CLUTCH UPSTOP SIGNAL T26 18DG/OR
2 CLUTCH INTERLOCK SIGNAL T141 18YL/OR
3 GROUND Z904 18BK
3 GROUND Z904 18BK/PK

Component Location - 26




Component Location - 27
