Parking Brake Warning Switch


Component ID: 438

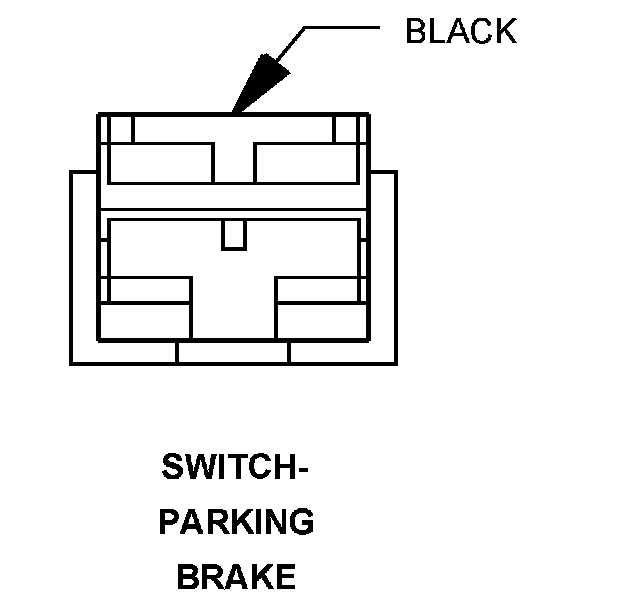

Component : SWITCH-PARKING BRAKE

Connector:
Name : SWITCH-PARKING BRAKE
Color : BLACK
# of pins : 1




Pin Description Circuit
1 PARK BRAKE SWITCH SENSE B25 18DG/WT

Component Location - 50
