Seat Temperature Control Module

Component ID: 192
Component : MODULE-HEATED SEATS

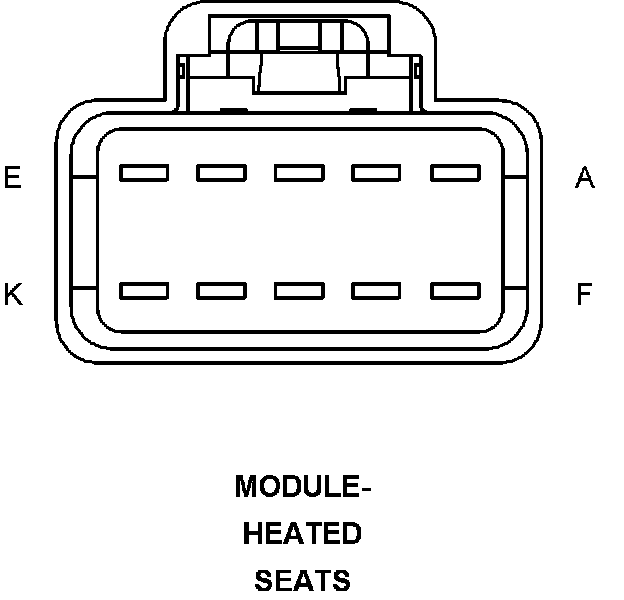

Connector:
Name : MODULE-HEATED SEATS
Color :
# of pins : 10




A - -
B - -
C - -
D LEFT SEAT HEATER B(+) DRIVER P187 16LG/BR
E RUN RELAY OUTPUT P693 16LG/WT
F GROUND Z914 16BK
G - -
H - -
J LIN BUS D506 20WT/DG
K RIGHT SEAT HEATER B(+) DRIVER P188 16LG/VT

Component Location - 54
