Shifter A/T

Component ID: 17

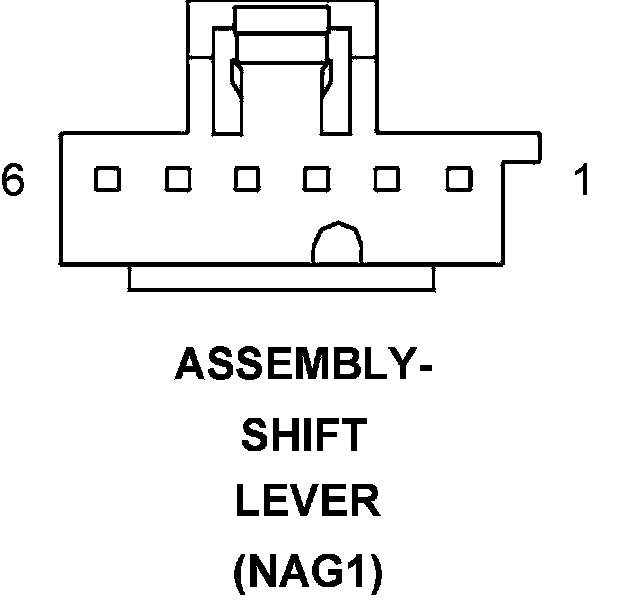

Component : ASSEMBLY-SHIFT LEVER

Connector:
Name : ASSEMBLY-SHIFT LEVER
Color :
# of pins : 6
Qualifier : (NAG1)
Gender : FEMALE




Pin Description Circuit
1 IGNITION SWITCH OUTPUT (UNLOCK-RUN-START) F1 20PK/WT
2 GROUND Z910 18BK/GY
3 BRAKE LAMP SWITCH OUTPUT L51 18WT/DG
4 - -
5 CAN C BUS (+) D65 20WT/LG
6 CAN C BUS (-) D64 20WT/LB

Component Location - 41

Fig. 41:

Component Location - 47






Connector:

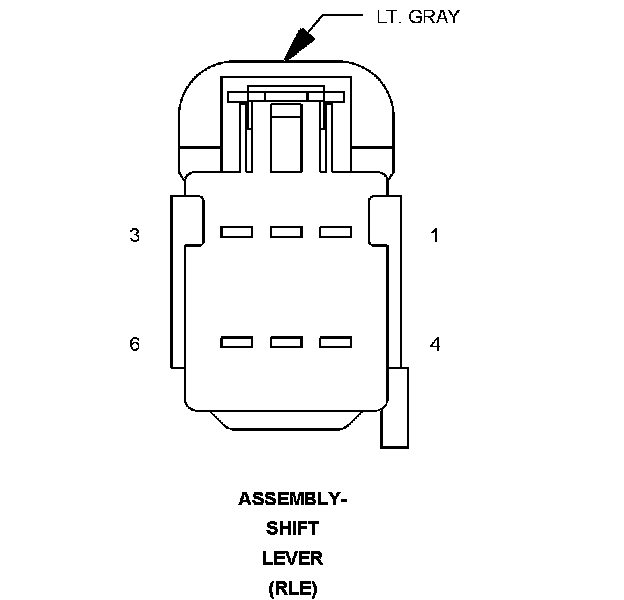

Name : ASSEMBLY-SHIFT LEVER
Color :
# of pins : 6
Qualifier : (RLE)
Gender : FEMALE




Pin Description Circuit
1 PANEL LAMPS DRIVER E12 20OR/GY
2 GROUND Z910 18BK
3 TOW/HAUL OD OFF SIGNAL T6 18DG
3 TOW/HAUL OD OFF SIGNAL T6 18YL/DB
4 GROUND Z910 18BK
5 BTSI UNLOCK SIGNAL K321 20BR/YL
6 GROUND Z910 18BK/WT

Component Location - 41

Fig. 41:

Component Location - 47
