Starter Motor


Component ID: 429
Component : STARTER

Connector:

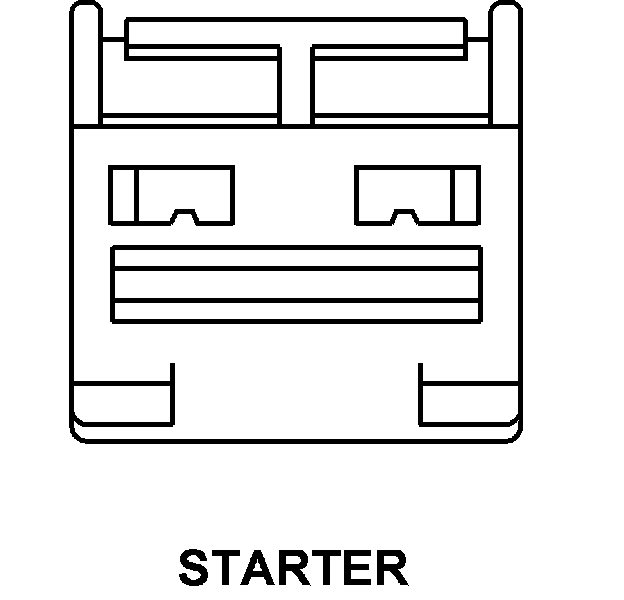

Name : STARTER
Color :
# of pins : 1




Pin Description Circuit
1 STARTER RELAY OUTPUT T750 12YL/GY

Component Location - 11




Component Location - 13




Component Location - 14




Component Location - 15




Component Location - 18

Fig. 18:





Component Location - 24






Connector:

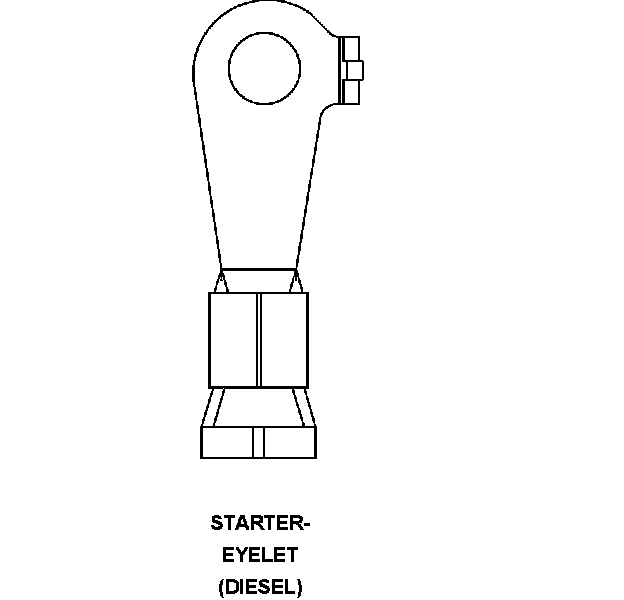

Name : STARTER-EYELET
Color :
# of pins : 1
Qualifier : (DIESEL)




Pin Description Circuit
1 B(+) A0 2RD

Component Location - 11




Component Location - 13




Component Location - 14




Component Location - 15




Component Location - 18

Fig. 18:





Component Location - 24






Connector:

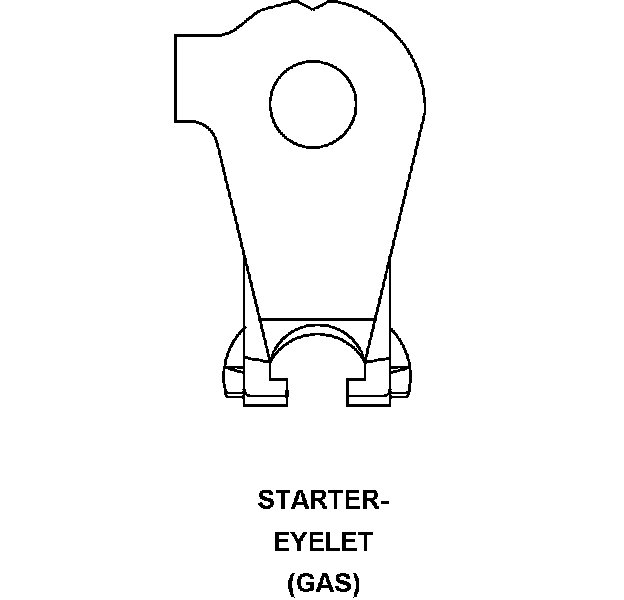

Name : STARTER-EYELET
Color :
# of pins : 1
Qualifier : (GAS)




Pin Description Circuit
1 B(+) A0 4RD

Component Location - 11




Component Location - 13




Component Location - 14




Component Location - 15




Component Location - 18

Fig. 18:





Component Location - 24
