Sunroof / Moonroof Switch

Component ID: 446

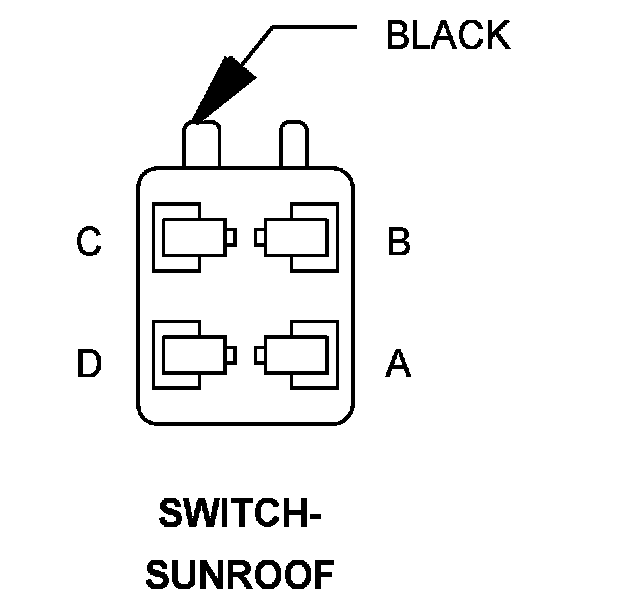

Component : SWITCH-SUNROOF

Connector:
Name : SWITCH-SUNROOF
Color : BLACK
# of pins : 4




A SUNROOF VENT Q4 20OR/YL
B RETURN Q6 20OR/LG
C SUNROOF CLOSE Q5 20OR/LB
D SUNROOF OPEN Q3 20OR/TN

Component Location - 35
