Circuit Breaker: Locations

Component ID: 55

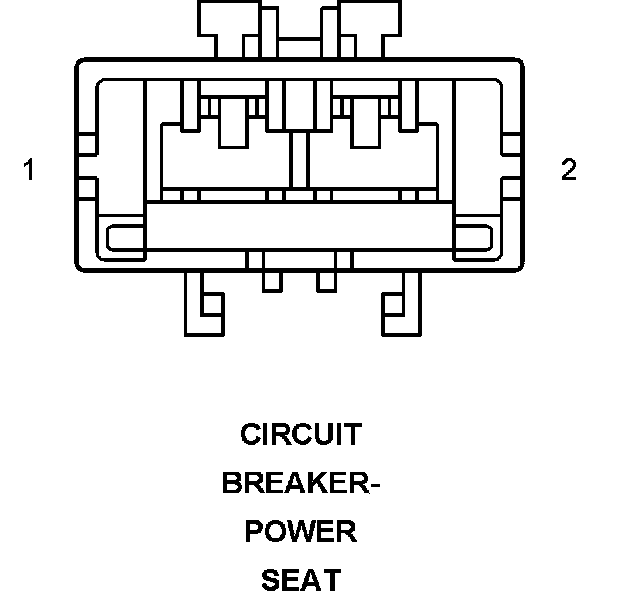

Component : CIRCUIT BREAKER-POWER SEAT

Connector:
Name : CIRCUIT BREAKER-POWER SEAT
Color :
# of pins : 2
Gender : MALE




Pin Description Circuit
1 FUSED B(+) A907 12RD
2 FUSED B(+) A210 14OR/RD

Component Location - 54
