B1287

B1287-RESET SWITCH PERFORMANCE

For a complete wiring diagram refer to Diagrams/Electrical.

- When Monitored:

With the ignition on.

- Set Condition:

The Instrument Cluster detects the Reset Switch active for greater than 20 seconds.





Diagnostic Test

1. CHECK FOR AN ACTIVE DTC

Turn the ignition on.

With the scan tool, record and erase DTCs.

Press the Reset switch three times.

With the scan tool, read DTCs.

Does the scan tool display this DTC as active?

Yes

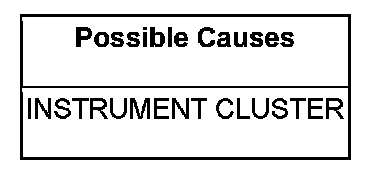

- Replace the Instrument Cluster.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- Test complete
